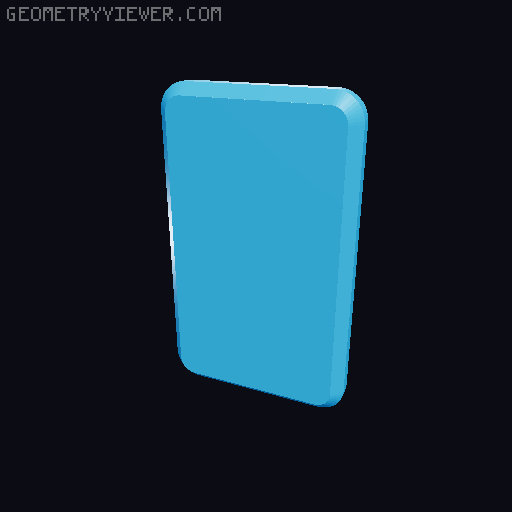

DSO152 FNIRSI oscilloscope box (120x200)
by Marcin · via Printables
| Format | STL |
| Category | Electronics |
| License | CC BY-NC-SA |
| Uploaded | Jun 11, 2025 |
⬇ 86 downloads
❤ 20 likes
👁 346 views
Description
Many thanks for Yanev for making such a grat box! Hovewer, after trying to customize it to fit FNIRSI DSO152, it occured to me, that minimal height of the bottom and the lid are 15mm each, a little to much for that small oscilloscope. But it fits and doesn't move as much as i anticipated. So, the box is modified to have inside dimension od 120x200mm. Print with anything, with basic options. I printed this wit PLA, 0.2 layer, 15% infill and it is plenty sturdy. Just rotate the models, so thay lay flat on the bed. Lid can benefit from supports added (table only), it looks better that way in hinge area, but it prints without them as well. 200mm width is needed to fit quite long probe. Oscilloscope is smaller, so i made custom insert, which fits snugly inside the box and holds the device in place, allowing rest of space to be used for storing said probe and cables. You will need 6 M3x30 bolts - two for hinges, four for clip mounting.
