Dual LED Light Bar Prusa MK4 with screw hole for securing 3D model thumbnail

Dual LED Light Bar Prusa MK4 with screw hole for securing

by asmagill · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles2.4k
UploadedDec 20, 2023
⬇ 85 downloads ❤ 7 likes 👁 643 views

Description

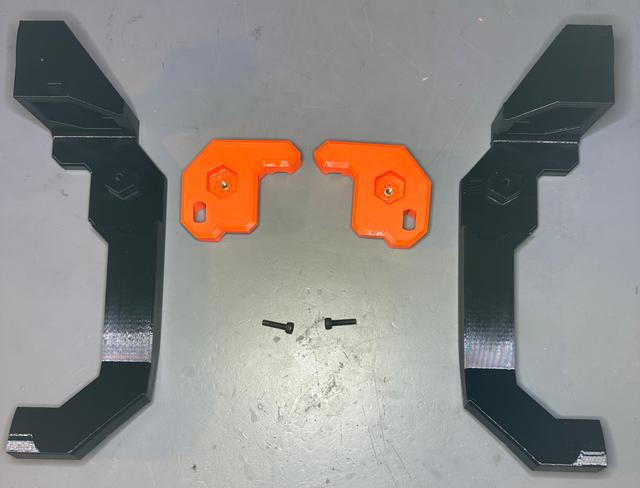

I don't like using glue when attaching parts that I could foreseeably need to take apart or modify in the future, so I added screw holes for mounting the light bar supports. The Z-Axis tops have a hole in the center of the hex depression that should have M3x4 heat set inserts (e.g. https://www.adafruit.com/product/4255) applied. The dual mounting bars have a screw hole for securing to the Z-Axis tops using M3 screws. I used M3x12, but you could probably go a little shorter or longer without a problem. For the change, I used Tinkercad and the modifications can be found at: https://www.tinkercad.com/things/5RgwPTTcGCy-mk4hexz-axistop-with-m3-screw-hole https://www.tinkercad.com/things/c2WSszUyWkd-mk4dualmount-with-m3-screw-hole
light led lightbar
