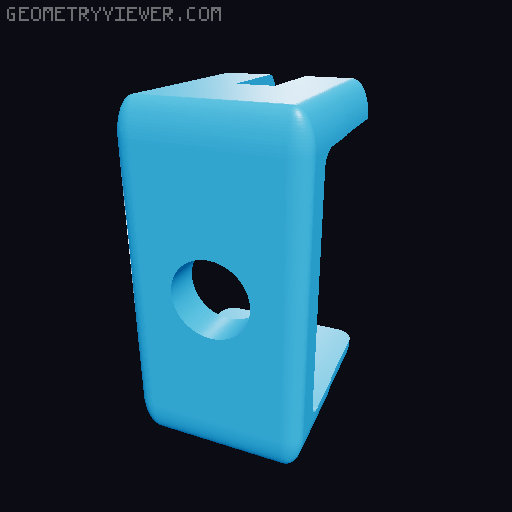

Dunlop Flush Mount Strap Lock Jig Set (3mm/10mm) - 44mm Body Thickness 3D model thumbnail

Dunlop Flush Mount Strap Lock Jig Set (3mm/10mm) - 44mm Body Thickness

by skeletonsecrets · via Thingiverse
FormatSTL
CategoryMechanical
LicensePublic Domain (CC0)
Triangles9.2k
UploadedApr 15, 2026
👁 8 views
⬇ Download STL 👁 View Details

Description

For guitar with 44mm body thickness such as Squier Sonic Mustang. Two simple jigs for drilling: 3mm pilot hole for strap pin screw 10mm hole for flush mount lock button Cutout length matches drilling depth required for Dunlop Flush Mount Strap Locks (33mm Pilot, 10mm Button). Sides and Top 5mm thick.
electric guitar guitar Squier mustang

Originally published on Thingiverse
