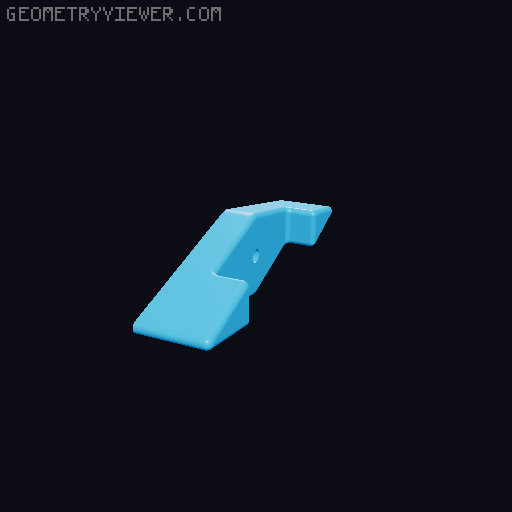

Dust Collector Ball valve 4in

Fusion 360 file included (.F3D). Design aspects can be adjusted via 'parameters' in 'Parameters Table' ('MODIFY>Change Parameters'). Parameters to change are in 'Favorites' section. Imperial units used (inches), though fasteners (bolt/nut) are Metric (millimeters). If you increase or decrease the Pipe_DiaOuter then the valve will automatically resize to the size of pipe you want to use. right now, it is 4.215 for a 4 in pipe. If you change it to 2.875 it will fit a 2.5in pipe. Print the ball in the same orientation as the purple ball pictured. Prior to gluing on the bearings make sure to add an M4 nut so you can attach the lever. Make sure the lever is level to the case, if not level then the detents will not function as intended. All nuts and bolts are M4, length will vary. Print Settings Printer: Bambu X1C Supports: Yes Customize your supports so it is only using the bearing case locations and the positive stops. make sure it doesn’t fill in the gap where the seal would fit. Layer height: .20mm Wall thickness: 3 or 4 loops Infill: 10%
