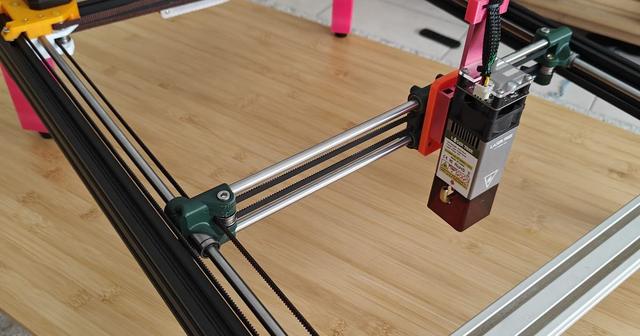

E3NG-Based CoreXY Laser Engraver This project is a DIY CoreXY laser engraver based on the E3NG XY gantry . All gantry parts were printed directly from the original E3NG files (link included below). This upload focuses on the custom-designed parts and structural modifications required to adapt the E3NG gantry for laser engraving. What This Project Adds In order to convert the E3NG gantry into a rigid, laser-ready platform, I designed and printed several custom components: Laser mounting adapter plate – custom-modeled to securely mount the laser module to the E3NG carriage Gantry legs – designed specifically for laser use Connect to the aluminum frame using T-nuts and M5 screws Equipped with Voron rubber feet for improved stability and vibration damping Cable supports – custom-designed guides for the laser wiring Frame reinforcement – an additional 2040 aluminum extrusion was added to increase frame stiffness The front legs are directly connected to this extrusion Cable management – wiring is routed using Voron clip-in cable clips that attach to 2020 extrusions Electronics & Firmware Controller: MKS DLC32 v2.1 Drivers: TMC2209 Firmware: FluidNC A complete FluidNC configuration file is included This electronics setup provides smooth motion, quiet operation, and reliable laser control. Notes This project reuses the original E3NG XY gantry design — full credit goes to the original creator Only the custom parts and modifications are included here The design is modular and easy to adapt for different laser modules or frame sizes Goal of the Project The goal was to create a rigid, clean, and reliable CoreXY laser engraver using the proven E3NG gantry, while keeping all modifications fully printable and easy to reproduce . If you build or modify this project, feel free to share your results or improvements. Links MKS DLC32 - https://a.aliexpress.com/_c4PtgvSf Laser adjusting plate - https://a.aliexpress.com/_c4VwOs9Z Laser - https://a.aliexpress.com/_c2RaQnGx Rubber Feet - https://a.aliexpress.com/_c4KAiHPv cable sleev - https://a.aliexpress.com/_c4ax6Idh 90 degree to connect the additional 2040 to the frame - https://www.printables.com/model/121419-8020-2020-90-degree-corner Cable managment clips - https://www.printables.com/model/538726-voron-2020-aluminum-profile-cable-clip-bigger-size/files FluidNC installer - https://installer.fluidnc.com/fluidnc (copy the config to the config.yaml that the installer will create after installation)
