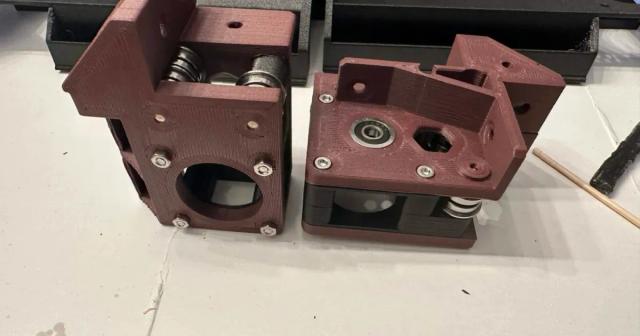

E3NG-NEXT-1.2 Double Shear

Thanks to Cronis, Seth, and a few other folks from Discord we have this slightly modified E3NG-NEXT design. Double shear on A/B with 30mm dowels for the A and B bearing stacks. For the double shear, you should have Nema17s with at least 35mm long shafts. This works with the original stepper motor cooling shrouds. This should work with the popular enclosure kits as well. Extra parts needed - 4x 30mm long, 5mm diameter dowels for bearing stacks. 2x extra F695 bearing for double shear support on A and B 8x 35mm long 3M Socket head cap screws (SHCS) From Cronis 2020 aluminum profile — 330 mm (1x) GT2 belt — 6 mm width, 1570 mm length (2x) MGN9H linear rails — 300 mm (3x) Suggestions - Test fit your parts. Route your belts before bolting everything together. Use loose, temporary zip ties or something similar to hold the belts. Trying to feed belts afterwards will likely cause a lot of frustration but it is possible. 📷 Image redacted — claim this model to add your own media I'll add some more photos once everything is together.
