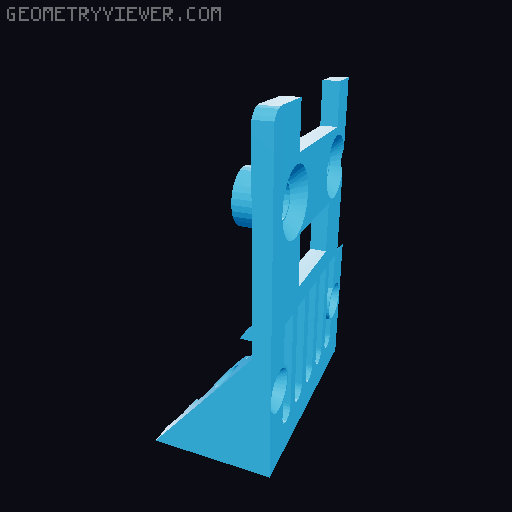

Eddy Duo Toolhead Centauri Carbon

This mod allows the integration of the btt eddy duo, inside the toolhead cover, making a more compact unit, and almost original look. Btt eddy can run pretty hot when printing ASA, and to compensate that, some venting holes were added to the Btt eddy mounting, routing the air slightly amount of air, from the part fan to the Btt eddy Requirements: Centauri carbon with full klipper, via, different mainboard, I have used btt octopus v1.1 2 units of M2x12mm bolts 2 units of M3x6mm bolts Assembly instruction: 1º Remove the original cover 2º Disassemlbe the fan, and insert it in the new cover 3º Heatpress the original fan bolts in the housing. Do not try to screw them directly, the mounitng can break 4ºRemove the housigng of btt eddy 5ºPlug it to your harness (usb or canbus) 6º Put the btt eddy in the toolhead, and bolt it with the back cover using the top m3 bolts, and the bottom m2 In klipper adjust the sensor position to the following x_offset: -23.445 y_offset: -23.073 All the parts should be printed with high temp material, ASA or better Still a work on progress but so far, it works Print it, test it, give me feedback and enjoy your modded Centauri
