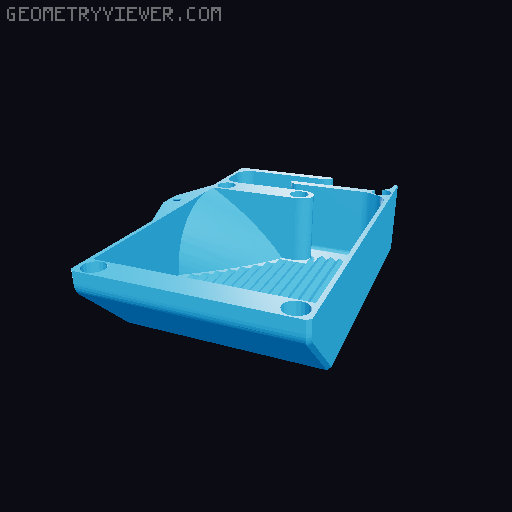

Eds powerfull magnetic Bambu Lab X1 / P1S (full AMS Hub compatible!) Exhaust Fan Muffler / Fan Silencer without Supports/Bridges!

Bambu Lab X1 Exhaust Fan Muffler / Fan Silencer (Eds Version) My remix of really cool original silencer of OurAngryBadger! THANK YOU for the step files!!! :-) Main changes - really nice (with big bambu lab logo) and easy print version without supports / bridges! You can screw it on, but it will holds only with magnets wonderfully! Fully compatible with AMS Hub - the version with AMS HUB in name is best for this! Look at last two pictures.. I changed the acoustic properties a little and rounded off the ventilation curve and I tested about ~5-6db reduction of noise! ( insulated with the carpet fleece ~6-7db!) For magnets mounting only, you will need for version 1.1. 10x pieces (v.2.0/2.1 up to 16x) of 6x3mm magnets (two stacked 6x3mm magnets for each hole). It would be enough to hold this silencer securely! Just glue them in the holes! (The holes are a little bit bigger - clerance for most of magnets ;-)) If you not sure, which version you should print - just go for the AMS HUB Version for 6mm or 8mm magnets - so you will be really on the safe side, this version is suitable for everyone with and without AMS HUB! :-) Print / Install Instructions (the same like in original!): I recommend to print with 4 walls, 6 top and bottom layers, and 0.16mm layer height on Bambu X1. You want a very solid shell so that air/noise doesn't escape as easily. PLA material is fine. After printing, you can place (better glue in) magnets into the holes. (Only!) if you want to - screw on the muffler with M3 screw. Update 13.08.2023: Added two new versions (2.0 and 2.1) of the AMS HUB full compatible muffler with 8x doubled magnets (for all those who want to be really, really on the safe side, that the silencer holds with only magnets :-) They are in the separated folder: “The AMS HUB full compatible - 8x3mm Magnets” and “The AMS HUB full compatible - 6x3mm Magnets" v.2.0 - with 8x doubled 6x3mm and 8x3mm magnets (you can use up to 16x magnets, but you don't need to fill all holes with magnets, 10 will be enough ;-) v.2.1 - with 8x doubled 6x3mm / 8x3mm / 10x3mm magnets without screwhole (looks really nice and if you don't use this screw possibility - this is your version :-) Update 1.2.2023: I've created for User TheCableGuy96 a version for AMS HUB and added it here! Top magnets are now placed sideways. All templates remain valid! :-) Thank you TheCableGui96 for idea and help! (i don't have a AMS hub :-) Just take the “bambu-x1c-muffler-for-ams-hub-eds-custom-8x3mm.stl” or “bambu-x1c-muffler-for-ams-hub-eds-custom-6x3mm.stl” for that! :-) Update 31.1.2023: User Gertsen adjusted this version for 10x5 magnets (you need only 4 such magnets!) and I added it here! Thank you Gertsen!!! :-) Just take the “bambu-x1c-muffler-gertsen_custom-10x5mm.stl” for that! :-) Update 25.1.2023: User RobRobM adjusted this version for two 10x3 magnets and I added it here! Thank you RobRobM!!! :-) Just take the “bambu-x1c-muffler-RobRobM_custom-10x3mm.stl” for that ;-) Update 1.1.2023: The Version with two 8x3 magnets added! Just take the “Bambu X1C Muffler Eds Custom 8x3mm.stl” for that ;-) Update 24.12.2022: OPTIONAL! additionally insulate the interior of the silencer with the carpet fleece - added cutting templates for fleece ;-) I've been using this setup for several months and this simple mod definitely makes my X1 quieter! I don't have any precise measuring equipment for this, but the fan noise has definitely become even more muffled for my ears - see video about on my Instagram Channel: https://www.instagram.com/reel/CmlUerEMyGf/?igshid=YmMyMTA2M2Y= INFO from Wikipedia : “Increasing the sound pressure level by +6 dB corresponds to a doubling of the sound pressure” BambuLab X1 Carbon with AMS Noise level without muffler 📷 Image redacted — claim this model to add your own media BambuLab X1 Carbon with AMS Noise level with muffler 📷 Image redacted — claim this model to add your own media Testet with “Dezibel X App” (iOS) on old iPhone INFO: You can take for that something like this carpet fleece/self-adhesive felt gliders: https://www.amazon.de/selbstklebend-FOGAWA-M%C3%B6belgleiter-M%C3%B6belschoner-Schnittgr%C3%B6%C3%9Fe/dp/B086JPK3GH/ref=sr_1_28?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=G1EJ4N6VOC4D&keywords=teppichfliesen&qid=1671896867&sprefix=teppichfliese%2Caps%2C115&sr=8-28 — ! — Thanks for downloading in advance and please don't forget to like this modell! Last but not least! ;-) 📷 Image redacted — claim this model to add your own media - Your abrasive filaments "grind" the feeders from AMS? Print and install this really perfect-fit BambuLab AMS Feeder Button Cover 📷 Image redacted — claim this model to add your own media - Your BambuLab X1 /P1P/P1S doesn't have enough space in the back for poop collection? Print this slide for side collection! 📷 Image redacted — claim this model to add your own media - Do you start to smell melted plastic when printing? Time to replace filter! Or print this one and fill it with carbon! 📷 Image redacted — claim this model to add your own media - Slim side silica dryer pod (drybox) with snap fit lids for Bambu Lab AMS If you like my work and want to support me - please follow me and if you want - you can buy me a coffee! https://linktr.ee/eds_3d_shop Thank you for your support and.. happy printing! Ed ;-)
