Elegoo Centauri Carbon Detector mount 3D model thumbnail

Elegoo Centauri Carbon Detector mount

by Kange · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles24.8k
UploadedJul 16, 2025
⬇ 2.6k downloads ❤ 411 likes 👁 10.7k views

Description

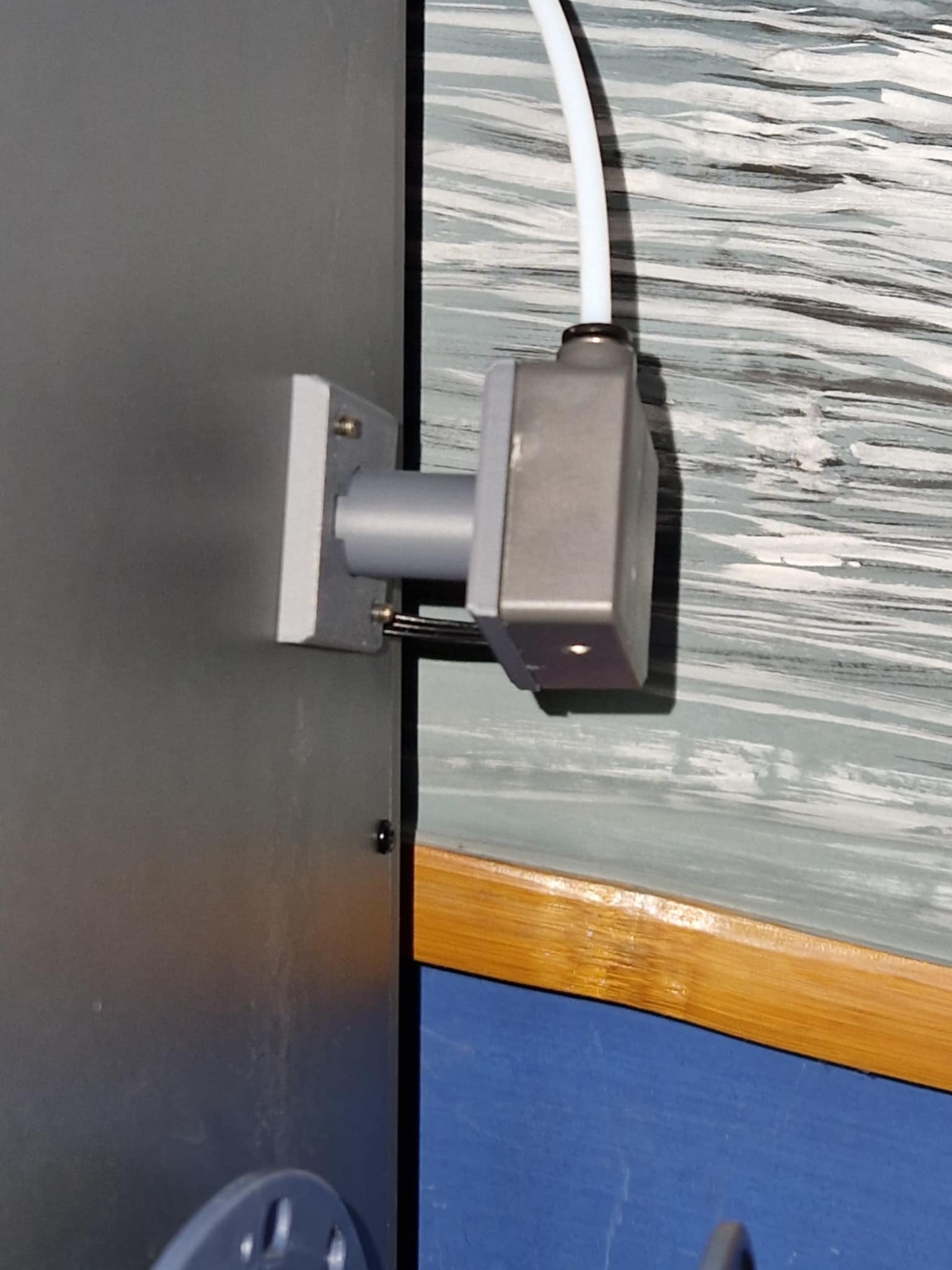

Batch 2 styled filament detector mount. It can freely rotate around the pivot and shift the filament line by 28.5mm. Parts have 1 layer sacrificial bridge layer to make it easy to print. For Batch 3 I modified the base. Enjoy it! Any feedbacks are welcomed! You will need: - x2 M3 8mm screws - x2 crews from detector - x2 M3 nuts OR x2 M3S heat inserts for Batch 1&2 only Print settings: - 0.16mm layer height - 4 wall - 20% infill - no support for Batch3: - support Enabled Assembly : - Insert x2 M3 nuts OR M3S into Part3 - Insert part1 in part2. Screw part2 to Filament Detector - Insert Part2 in Part3. Turn Part2 90 degree to fit in. Screw Part3 to the side panel with x2 M3x8mm screws.
elegoo centauri centauricarbon

Originally published on Printables
