Elongated vise

by positron · via Printables
FormatSTL
CategoryTools
LicenseCC BY-SA
Triangles53.3k
UploadedMay 23, 2023
⬇ 163 downloads ❤ 28 likes 👁 1.0k views

Description

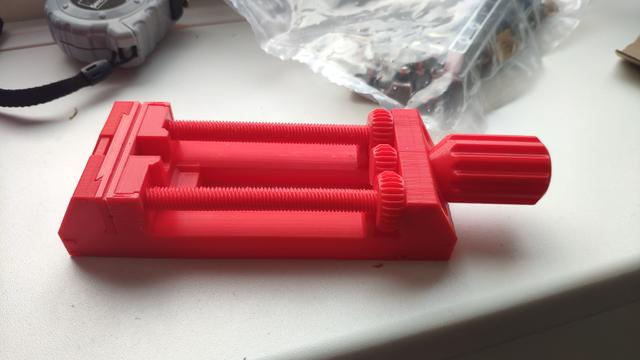

This is a remix of "Fast Operation Vise" that is a remix of "Yet ANOTHER Machine Vise". I wanted to have a smaller overall vise, but with longer jaw travel, preferably 100mm. So I designed this model that has increased travel, but should be printed at 75% scale. The resulting usable jaw travel is around 70mm, and it prints a lot faster that the original. I also added some cutouts into the base and sliding jaw, that should not affect usability as a PCB vise, but allows to use it as a bearing and gear puller. I printed main gears with XY size compensation of -0.1mm to account for scaling the gaps, all other parts with 0 compensation.
