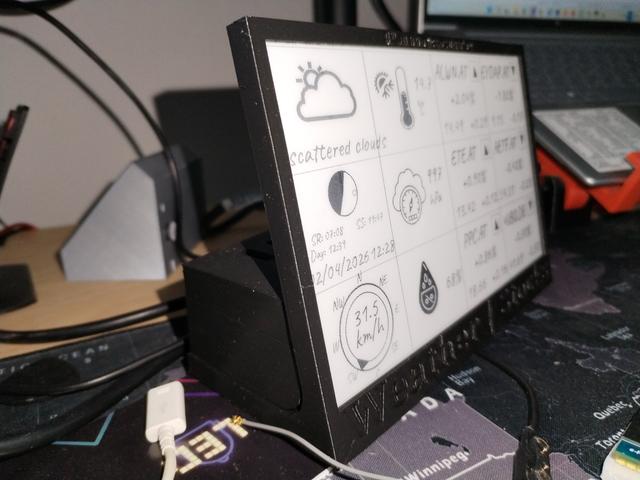

Enclosure for 7.5" E-Paper Display + Raspberry Pi Zero W

A slim, wall-mountable case that protects your DIY weather & stock dashboard. I designed this enclosure to perfectly fit a 7.5 inch Waveshare e‑Paper display (HAT version) and a Raspberry Pi Zero W (or Zero 2 W). The case leaves the microUSB power port accessible and allows the display to be seen through a clean front cutout. There’s also space for the GPIO header and the flat ribbon cable. Features Snug fit – no rattling or loose parts. Cutouts for: MicroUSB power (on the Pi Zero). Optional access to the display’s 4‑pin header (for manual reset). Cooling vents (small slots on the back). Easy assembly – the display and Pi are held by internal standoffs (no glue needed). Hardware compatibility Display: 7.5 inch E‑Paper HAT (Waveshare, 800×480) – Amazon link Raspberry Pi: Pi Zero W or Pi Zero 2 W (with soldered GPIO header) Connector: 40‑pin female header (already on the display HAT – no extra parts needed) Print instructions Setting Value Material PLA or PETG (PLA works fine for indoor use) Layer height 0.2 mm Infill 20% (gyroid or grid) Supports Yes for main body Brim Not needed if your bed adhesion is good Full Project: https://github.com/panoscure/e-paper-Raspberry-stocks-weather/
