Ender 3 S1 Offset Mount for Klipper
by PNWPrints · via Printables
| Format | STL |
| Category | Art |
| License | CC BY |
| Triangles | 2.9k |
| Uploaded | Jan 16, 2023 |
⬇ 77 downloads
❤ 21 likes
👁 1.6k views
Description

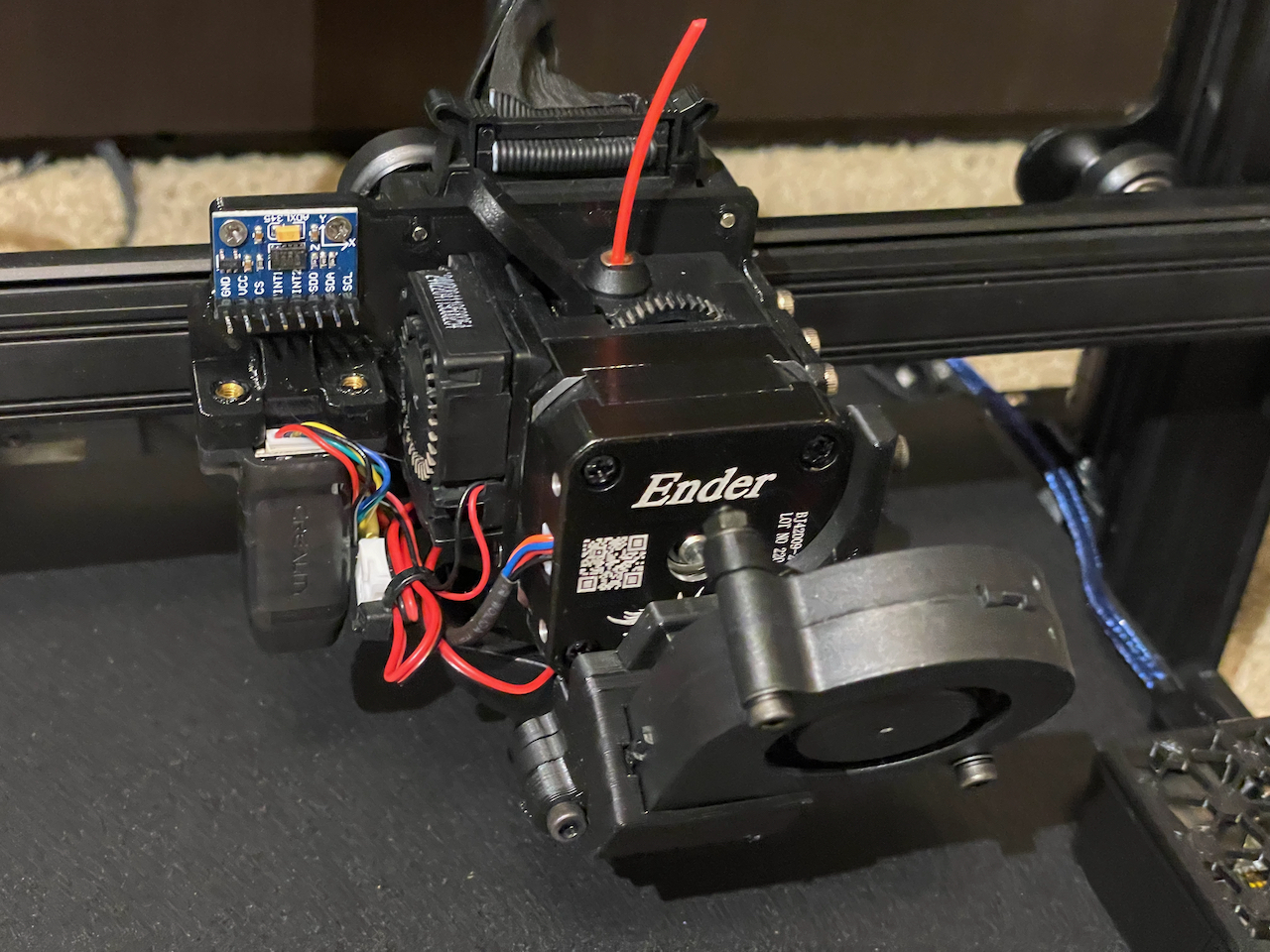

This is my version of the CR Touch offset mount that moves the probe inline with the nozzle to help with bed mesh issues, as well as adding a space for the ADXL34 accelerometer used by Klipper's input shaping system. This model requires screw inserts for the M3 CRTouch probe mounting screws. If there is interest, I can add a model without this requirement. I suggest printing with PETG/ABS/PA, but PLA may work if you only print PLA models. These are the inserts I used for this model. These are the M3 screw kit I suggest. Good luck and happy printing!
AI Analysis: This is a specialized mounting assembly for printers, designed to position the head at an offset angle for improved quality. It integrates motion control sensors and stepper motor connections to enable precise movement during . The component features a robust mechanical structure with visible wiring and mounting points for secure attachment to the printer frame.
