Ender 3 S1 / S1 Pro heating bed cable chain/holder + gulfcoast heated bed prototyps

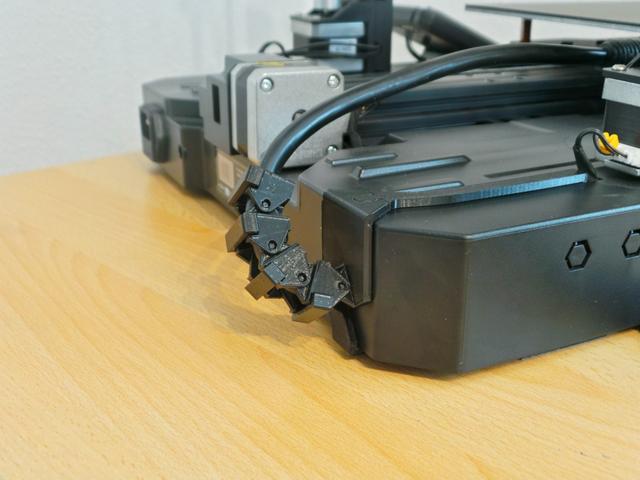

Be one of ten who leave a Like at Printables and support me with it :) Prevents cable breakage at the housing outlet and rubbing on the Y-axis motor. It can be attached to the underside of the housing and to the recess for the stepper motor. I only needed support and brim for the ground plate, I have attached a picture for this purpose. The rest of the parts can all be printed without support and brim. I did the customization for the S1 together with Bluegooglueygley . If something still needs to be adjusted, please contact me ;) For the base plate of the S1 you can use a M3 screw or just a piece of tape to fix it to the bottom of the case. I added prototypes in collaboration with John Fleming for use with a gulfcoast heated bed. Quantity: 1x Ground plate 1x Hook 1x Chair link end 3x Chair link 4x Clip Walls: 3 Infill: 10% Layer: 0,2mm User DKVisions has created an adapter in case someone wants to run the cable chain all the way to the print bed. 📷 Image redacted — claim this model to add your own media Check out my other designs too!
