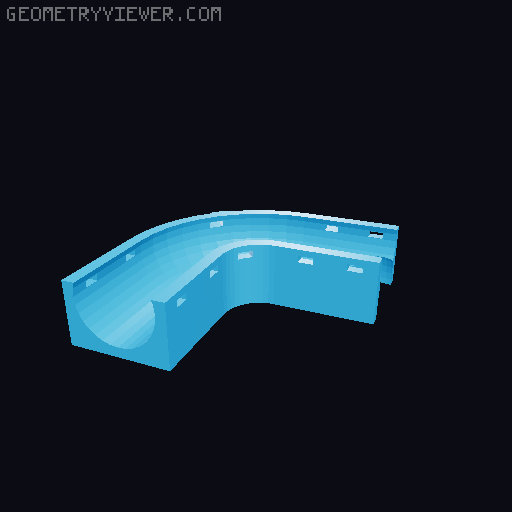

Ender 3 (V2&PRO) CR Cable Guide for Direct Drive 3D model thumbnail

Ender 3 (V2&PRO) CR Cable Guide for Direct Drive

by George · via Printables
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles2.0k
UploadedFeb 12, 2022
⬇ 2.2k downloads ❤ 400 likes 👁 13.4k views

Description

After I convert my printer to direct drive my extruder cables were touching the Z rods. I don't like cable chains so I need a solution for cable management. The guide has a 90 degrees angle in order to better route the wires and it is mount on the old extruder plate with 2 M3x8 screws from underneath (you could use nuts and washer but I didn't find necessary). Secure the cables with some zip ties and your are done! Updates: 25.02.2022 v3.0 - discovered the cable guide will touch the upper left z lead screw holder and reposition the cable channel.
cr10 cr10s cr10spro cablemanagement ender3 crealitycr10 cableholder cableguide crealityender3 directdriveextruder cableorganizer ender3pro crealitycr10s crealityender3pro ender3v2 ender3v2mods cr6 cr6se crealitycr6
