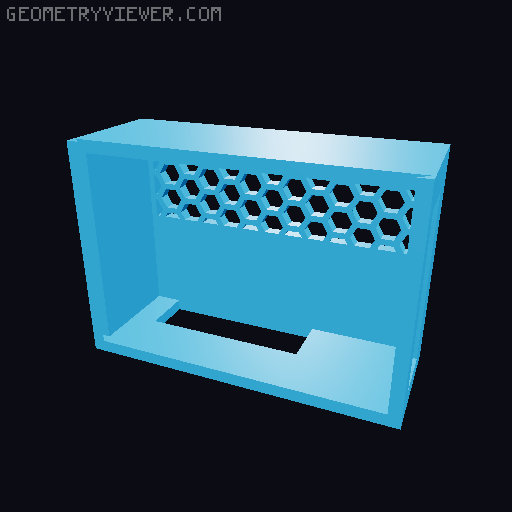

Ender 3 v3 KE / SE Storage Box with cable holder and removable Raspberry Pi 4B case 3D model thumbnail

Ender 3 v3 KE / SE Storage Box with cable holder and removable Raspberry Pi 4B case

by 3D by JT · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles1.4k
UploadedFeb 18, 2026
⬇ 33 downloads ❤ 5 likes 👁 426 views

Description

I've been using the Storage Box with Cable Holder for Ender 3 V3 KE/SE for a little while now, and recently added a Raspberry Pi 4B to run Octoprint. I wanted to attach the Pi to the printer to make things a little neater, but couldn't find an option that worked well for this setup. This model adds a removable case for a Raspberry Pi 4B. I sized it to fit the case I had for my Pi, which is the CanaKit Raspberry Pi 4 Case ( https://www.canakit.com/raspberry-pi-4-case.html?srsltid=AfmBOoqjUneTjlFaqdlAyq320hklRw7g-bEsOl33j2aZf5xqlmkZWULkcNs ). The enclosure measures 96x64x32mm and would probably fit other similarly sized cases. I also had trouble getting the original model to fit on my gantry, because it was slightly too big, so I increased the size of the box by 1%, which leads to a perfect fit in my case. My gantry measures 40mm for reference. You'll need to resize the lid to fit. I found increasing the length by 1% and leaving the width the same led to a really nice fit. I printed the case on the largest side with tree supports. The supports can be a little hard to remove from the slots, but adding support blockers on the sides of each slot when slicing helps.
storage creality ender storagebox raspberrypi raspberrypicase raspberrypi4 ender3 raspberrypi4b crealityender3 storagebin canakit ender3v3se ender3v3 crealityender3v3 crealityender3v3ke crealityender3v3se ender3v3ke

Originally published on Printables
