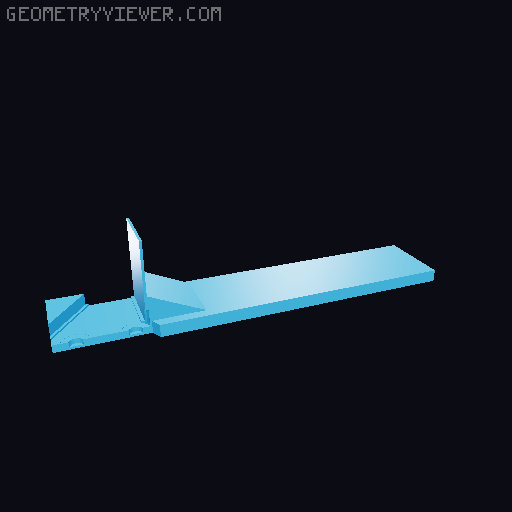

Ender 3 V3 SE/KE LED Light Mount (Remix)

You can split two parts 12V led strips and serial connect directly to 24V PSU. You can parallel connect two parts 12V led strips and use DC-DC MP2315 or similar, and use MCU J10 (pin 5) to control led strips as caselight from klipper. [include caselight.cfg] in printer.cfg ##################################################################### # Caselight pin Definition ##################################################################### ## Caselight - creality board, J10 Connector pin 5 [output_pin caselight] pin: PC0 pwm: false value: 1 shutdown_value: 0 ##################################################################### # Macros ##################################################################### [gcode_macro _CASELIGHT_ON] description: Helper: Light on gcode: SET_PIN PIN=caselight VALUE=1 {action_respond_info("Caselight on")} [gcode_macro _CASELIGHT_OFF] description: Helper: Light off gcode: SET_PIN PIN=caselight VALUE=0 {action_respond_info("Caselight off")} [gcode_macro CASELIGHT] description: Toggle light gcode: {% if printer['output_pin caselight'].value == 0 %} _CASELIGHT_ON {% else %} _CASELIGHT_OFF {% endif %}
