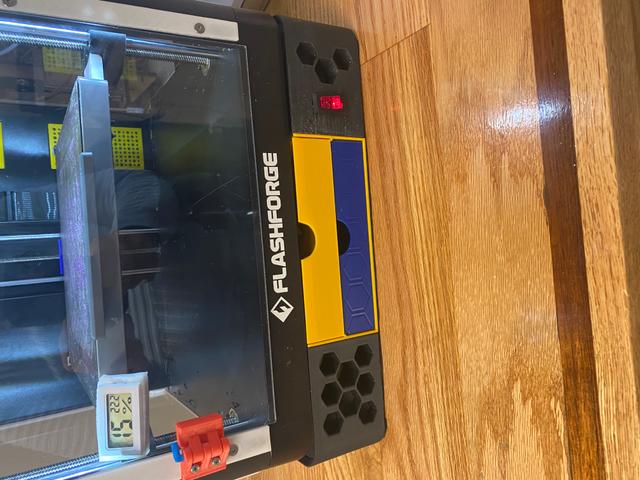

Enhansed Base for Flashforge AD5X 3D model thumbnail

Enhansed Base for Flashforge AD5X

by mickeypop · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles6.9k
UploadedJan 30, 2026
⬇ 89 downloads ❤ 37 likes 👁 995 views

Description

It is not HSW compatible. Recommended print settings: PLA, 0.6 nozzle, height 0.42 mm, 2 perimeters, gyroid infill 15%, 4 layers top and bottom, and no support except the switch and AC connector areas I liked @LudekSlouf_2081788's remix, but I wanted more. I added several changes hopefully for the better - power switch on front, lighted or unlit work. No more reaching behind to turn on. - extruded down the feet holes by 5mm to add 6mm mouse pad scraps, integrating anti-vibration feet - added 4mm insert hole for wiring(4mmOD inserts for 3mm threads) to hold wiring tie downs - prominently labeled parts with 10mm font - UPDATE added drop-in drawer divider, fits all drawers my changed files included A0, B0, C0, D0, L0, L1, and R. The drawers and frame are unchanged. The Power Switch used is the lighted type; an unlit one is still good. The switch is roughly 12.25x28mm, common at HomeDepot, Lowes, RadioShack ETC... CARLING TECHNOLOGIES LRA211-CR-B/125N The RED wire is unused if the Switch is unlit. I also glued a thin mouse pad in strips to the bottom for extra anti-vibration and to hold better to the tabletop. I banged these changes out in SketchUp. All CAD files are included if you want.
switch power base drawers flashforge
