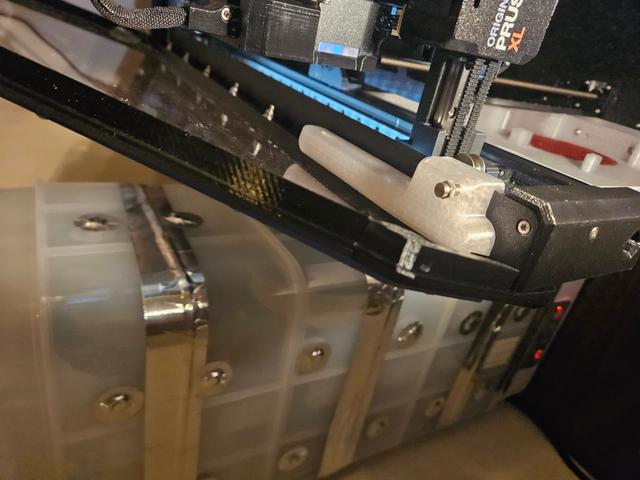

EnXLosure Top Rail Solid mount with Calibration Pin Holder. 3D model thumbnail

EnXLosure Top Rail Solid mount with Calibration Pin Holder.

by sjoyce804 · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles4.2k
UploadedNov 30, 2023
⬇ 54 downloads ❤ 12 likes 👁 531 views

Description

EnXLosure Top Rail Solid mount with Calibration Pin Holder to provide more rigid mounting of enclosure top. Not sure if this is an issue with the magnets with the Ali kit or if it was just due to the strength of the magnets that I was able to obtain from Amazon in my area (I would have preferred to purchase stronger magnets from my usual hardware source, but they did not have any magnets available in the original modeled size.) Or if the issue was due to the warping of the PETG components that I printed, which caused the magnets that I used to not be secured with enough force to properly seat against the top rails. These mounts will require (4) M4 Heat sets and (4) M4x25 bolts to secure the Top Frame to the rails. I have included a calibration pin holder with a tapered mounting hole for quick access and the mount can be mirrored easily in the your slicer program to be used on the other side.

Originally published on Printables
