Description

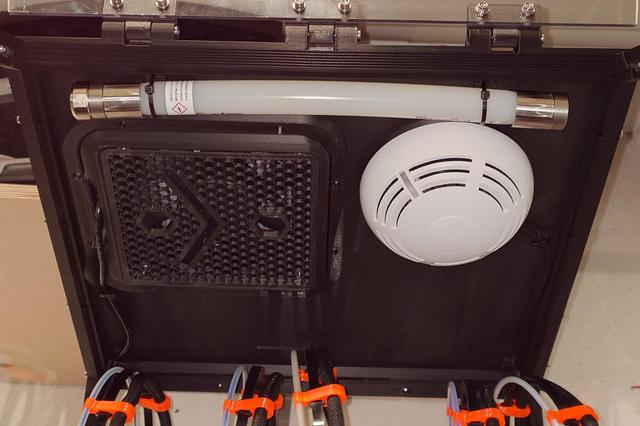

This Remix adds holdes for a AlveoONE filter, a mounting relief for a Satel DRP-100 Smoke Detector and mounts for a BlazeCut. The smoke detector needs a powersupply of 24V and a circuit that triggers at currents >10 - 20mA. It shall cut the power of the printer and filter fan to stop anything that supports a starting fire. For the last rescue the BlazeCut will kill the fire. To raise the filter please print the tightening ring a second time with a hight of 50 mm. Otherwise it will interfere with the print head cables. Replace the screws with M3x70 mm. You also need the mount for the smoke detector and extract the contacts. Print with supports on the smoke detector mount
