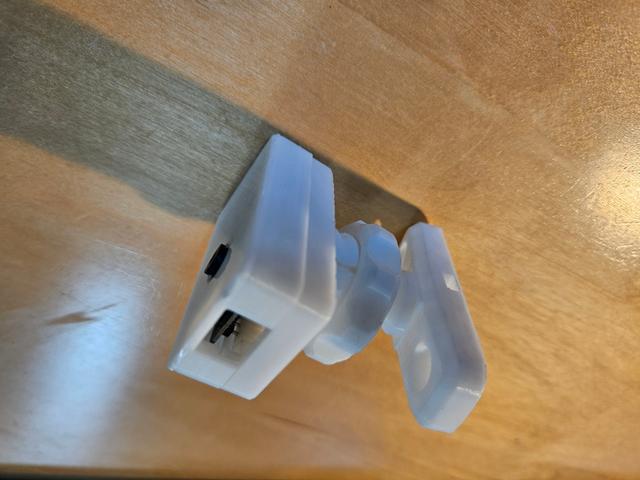

ESP32 CAM case / enclosure / ball joint wall/ceiling mount 3D model thumbnail

ESP32 CAM case / enclosure / ball joint wall/ceiling mount

by puruduspawariolis · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles28.6k
UploadedSep 4, 2025
⬇ 69 downloads ❤ 9 likes 👁 867 views

Description

My first model ever created and published, so please forgive any novice mistakes. ESP32 cam case with ball joint wall/ceiling mount based on the modular case and mount created by milans. Thanks for the great Printing the combined cam case bottom and ball joint screw (esp 32 cam case bottom ball joint screw - dupont power) needs a lot of supports due to its shape. If you don't like it, use the “normal” cam case bottom and print the “esp 32 cam case mount ball joint screw - dupont power”, then glue them together. Unfortunately, Cura compains about the model not being watertight and mesh tools can't fix it, but it printed totally fine. If anyone could help me fix this, I'd appreciate and publish an update. The ball joint screw segments are prone to break off when removing the supports or otherwise fiddling with them. Note while this model is more compact than the original, the adjustment range of camera angles are a more restricted. Printed in eSun PLA+ at 20% infill, normal supports, brim Scaled the ball wall mount (not included here, see original) to print at 101%, else it was too loose.
case wallmount esp32 esp32cam cam esp32camcase

Originally published on Printables
