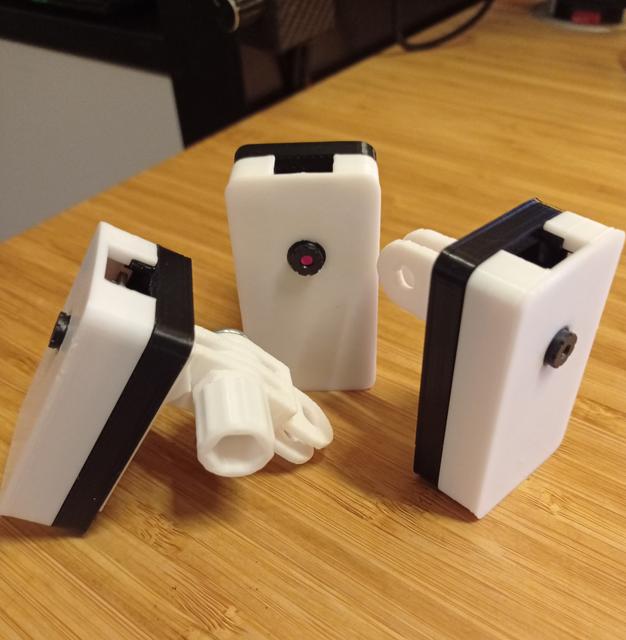

ESP32 CAM case / enclosure / mount using modular mounting system 3D model thumbnail

ESP32 CAM case / enclosure / mount using modular mounting system

by milans · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles28.9k
UploadedApr 13, 2023
⬇ 842 downloads ❤ 73 likes 👁 5.0k views

Description

Fits the AZDelivery ESP32 Cam Module Board. There's a good chance other branded boards also fit. Snap fit enclosure Enclosure has holes for the ESP32 cam board pins to hold it in place Use some glue or double sided tape to attach the modular mount plate I remixed the enclosure from a generic ESP8226 box project. Will add a link to the project once I find it. The modifications to fit the ESP32 CAM board + camera are made by me, as is the attachment for the modular mounting system. I will be personally using this to create a security camera system over wifi. If you decide to use this model, please share a make. I'd love to see what you're using it for :) Update 10-04-2023: Added adjustable ball joint ceiling / wall mount with dupont cable duct Update 28-03-2023: Added V2 which includes a port in the back which can be used to power the ESP32 with 5v using dupont connectors
