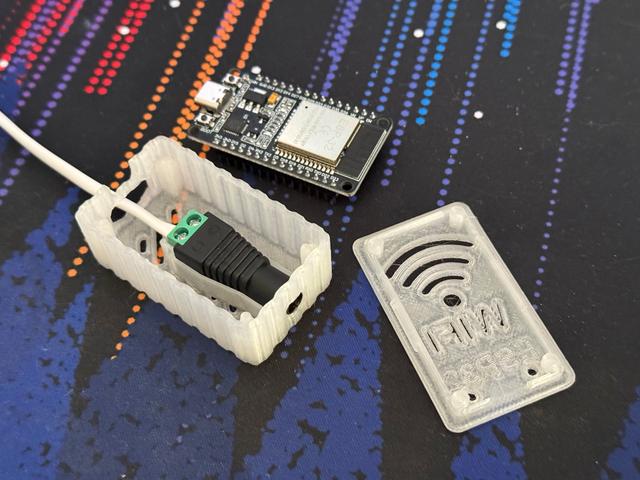

ESP32 & WLED case w/ DC jack and wire port 3D model thumbnail

ESP32 & WLED case w/ DC jack and wire port

by Lorinthu · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles5.8k
UploadedOct 10, 2025
⬇ 59 downloads ❤ 9 likes 👁 315 views

Description

The ESP32 case from @Predy is nearly perfect, but not all projects are USB powered or need their pins accessible. This remix adds a holder for a DC barrel jack under the board and a port for wires for a single-box solution for simple WLED projects. This remix also includes the original WiFI lid variation as the WLED variation does not print well. This retains compatibility with all of the original lids from @Predy's project: https://www.printables.com/model/678484-esp32-case Versions: v1 - small port for wires v2 - large port big enough for a presoldered pigtail with JST-SM connector to pass through v2b - DC and USB ports on same side, large port for JST-SM pigtail v3 - deeper USB cutout instead of wire port, DC jack on opposite side
esp32 wled esp32case esp32devkitv1 wledlamp wledcase wledenclosure wledcontroller wledbox
