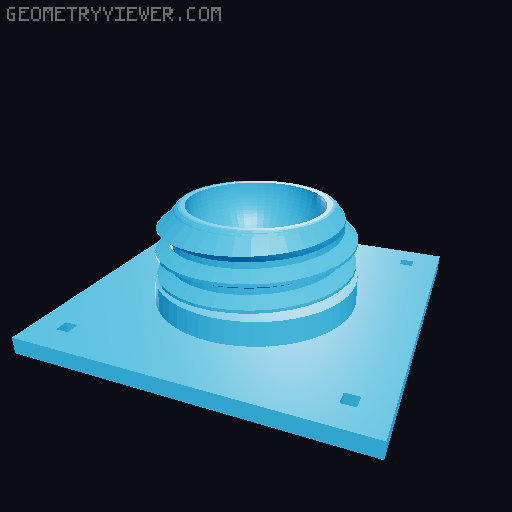

EUFY SoloCam S220 Bottom Mount

I wanted a mount for my EUFY SoloCam S220 so I can mount it to a rail or table. This print allows me to use the camera as needed and not obstruct the solar panel or mess with the case. All the parts should slide in and are held by tension when the front and rear hoods are slid on the camera. Please print the parts as oriented and use supports for the connector and ballSwivel ##You'll need to print 2 - Connectors 1 - ConnectorPicatinnyRail or ConnectorSlideMount 1 - eufy_s220_frontShield 1 - eufy_s220_rear 1 - PicatinnyPostMount or PicatinnySlidePostMount (Mates with the opposing connector) 1 - ballBase 1 - ballCap or ballCapKnurled 1 - ballSwivel 1 - ballMountPin 2 - picatinnyMountPin Note: Print the connector on their side so the strength of print runs the entire length of the connector. Printing it flat might allow it to break along the layer lines if your printer isn't tuned to fuse the layers properly. ##Camera Mount Assembly Slide the front shield over the camera and slide the connectors into the recess of each part of the shield. In my photo I use the two smooth connectors on the sides and the ConnectorSlideMount on the bottom. If it's hard to hold together, you can use a dab of glue to hold them in place in the front shield. Don't get glue on our camera. Slide the eufy_s220_rear over the back of the camera keeping the recess in line with the connectors. Press it on and it should be very snug. ##Base Assembly Place the ballCap/ballCapKnurled over the BallSwivel. Press on and align the hole of the PicatinnyPostMount/PicatinnySlidePostMount onto the BallSwivel Insert ballMountPin into the slot of the Mount and the BallSwivel Place the ballSwivel into the ballBase and screw the ballCap on the ballSwivel threads ##Mate Screw or wire tire the Ballbase assembly in the desired location Slide the camera connector onto the ball swivel mount. Picatinny Rail goes into the Picatinny Slide. Use the PicatinnyMountPins to lock the connectors together Align camera to where you want it to see and your done
