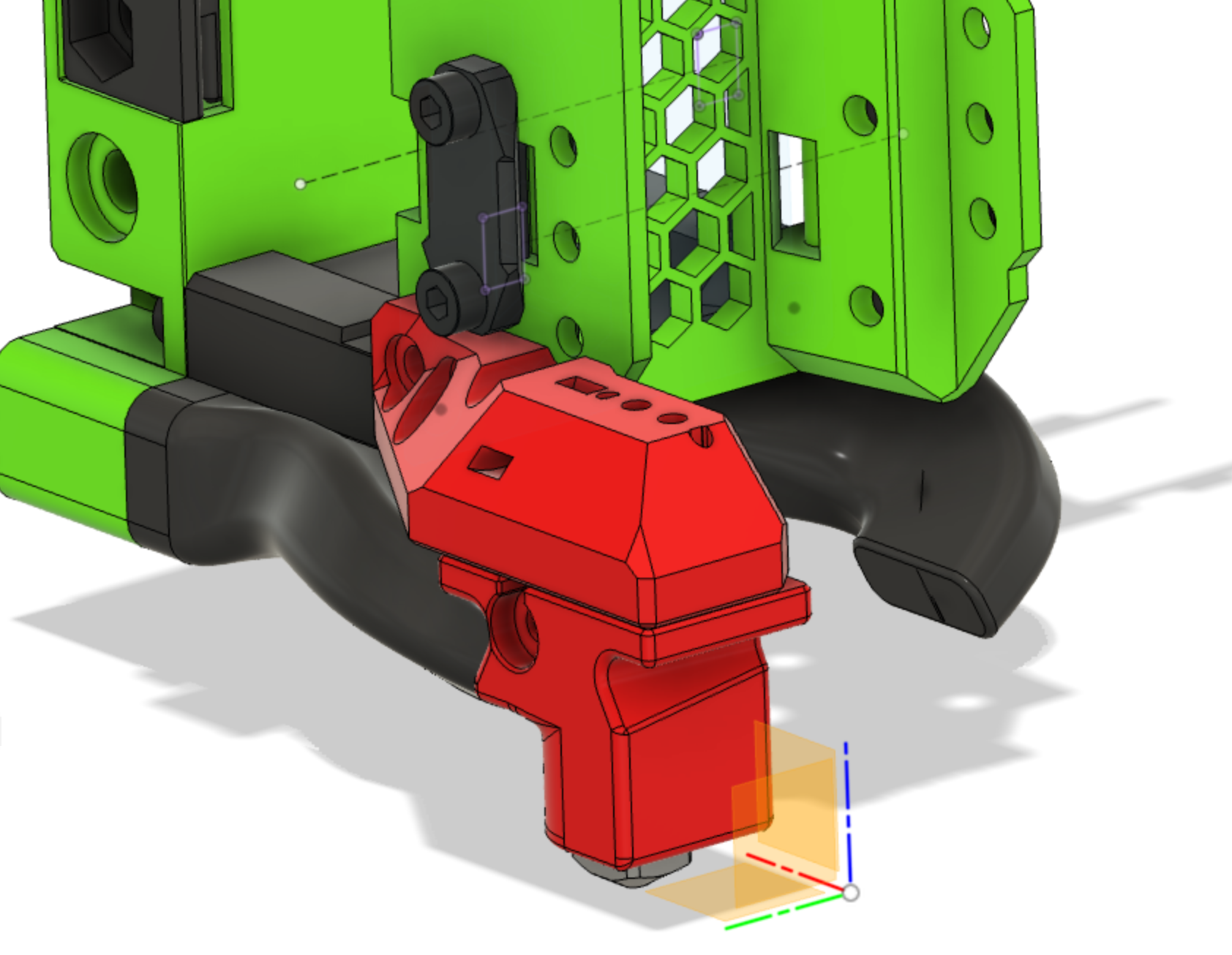

EVA 3.0 Klicky mount 3D model thumbnail

EVA 3.0 Klicky mount

by samosnn · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles3.0k
UploadedApr 20, 2023
⬇ 47 downloads ❤ 11 likes 👁 1.1k views

Description

Custom version that adapts the klicky and unklicky probe to EVA3.0 carriage (at least for my setup..) Personally, been using with great success with unklicky since RatRig team released the Eva3.0. Decided to finally publish this version in hopes that someone can find it useful - Not 100% sure it will work on a standard EVA 3.0 setup. Originally designed to work with my EVA/BLV mod Design goals: Work with my other mod (EVA on a BLV mgn cube) Specifically, make work with unklicky ( BFP long version ) Side mount Probe offsets should be: X: -33.5mm Y: -25.4mm I have not tested with a normal klicky. I'm using an unklicky bfp long. If you are using a normal klicky, the long version might be needed. Side mounting means some compromises have to be made. The probe is a bit farther than ideal in order to avoid interference from the fan horns and shroud. However, in my own use it seems to not be a major issue.
klicky eva3 unklicky klickyprobe

Originally published on Printables
