Even More Customizable Filament Swatch

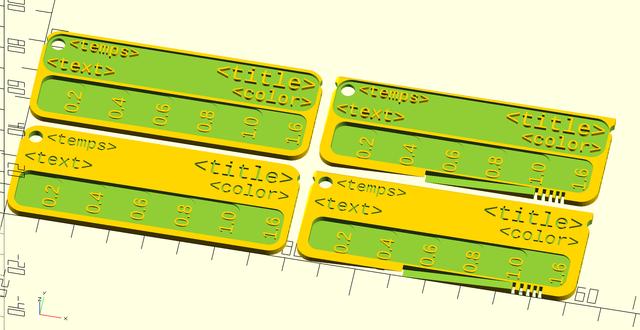

After trying out the Filament Swatch by Makkuro there were some adjustments I wanted to make to better fit my use case as well as to simplify the customization. The changes made primarily reflect my particular use case, so please feel free to leave feedback or remix this for yourself. Given that this was made specifically to be more customizable, I am only including the sample model I am going to be using as a template for my collection. If you are looking for premade modes, Makkuro has plenty available in the downloads section. There are also a lot of storage options available on their page so please take a look. My personal favorite is the flip-through one. To make customization a little easier, the parameters have been cleaned up to make the customizer a little easier to use for those less familiar with OpenSCAD. To view the customizer, unselect Window>Hide Customizer. 📷 Image redacted — claim this model to add your own media OpenSCAD has different fonts based on your system, it is based on the fonts that are instaled on the system. For Windows the font has to be installed for all users in order for OpenSCAD to detect it. To see the list of fonts, go to Help>Font List. The dialogue shows an example of how the text is input, use that format when adjusting the font. If you need additional help getting started, please consult the original page first as there are additional guides and instructions available. Changelog 15-5-23: Changed steps so bridges can be placed anywhere. Fixed rounding issue with whole numbers on bridge Added text option on left boarder as well with rotation. Added Voron logo. Additional Refactoring. 8-5-23: Reorganized and renamed parameters and functions to improve readability. Added text lines to the top left, right edge, and upper left. Added text size option to all surface text, font option for border and step text, text alignment for top left text, and text rotation option for right edge. Changed test circle logic so tests can be selected independently instead of being based on the amount of tests. Allowed test circles to be enabled independently of the edge tests. Defined assertions to add guardrails. Improved customizer experience.
