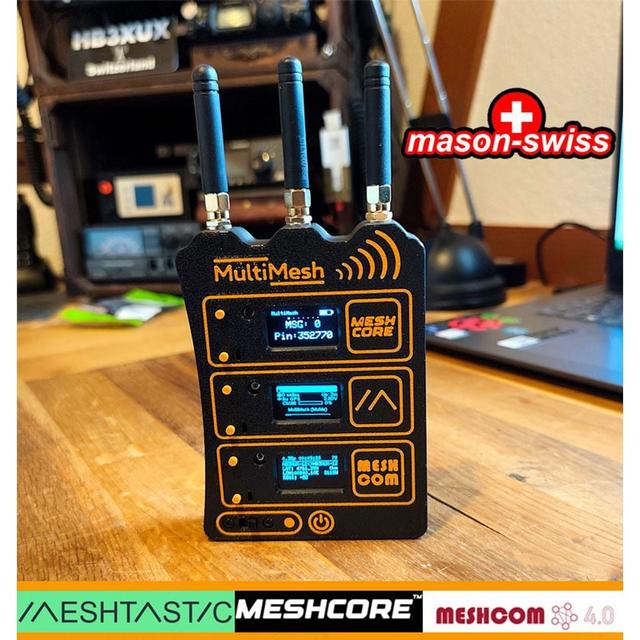

Experiment Multi Mesh Receiver, Meshtastic, Meshcore and Meshcom

I don't like the discussion which Mesh I have to use, which is better, etc., I like all those three ones, so I made a multi receiver. Please note, I didn't write this bevor, this is just an experiment, I know, antennas are to close, battery is I think too small. Also I don't know how 3x Heltec interact so close together, so use at your own risk. I tried it for a week and until now no problems. But I also have my three repeaters only 20 meters away from me. Actually this are just 3 Heltec Lora V3, 2x 868 MHz for Meshtastic and Meshcore and 1x 433MHz for Meshcom. I used it a few days and the was no interfernce between those three ones, so I think it works :-) Powered is the whole thing with a 1S, 3.7V LiPo with 1100mAh and a little USB-C charging board. Also I realized, that some older V3 Heltec boards have a different onboard antenna, but it works with both boards. Maybe you have to adjust a little. What you need: 3x Heltec V3 boards, https://heltec.org/project/wifi-lora-32-v3/ 2x you can use the standard antenna cable 1x antenna cable 5cm longer 1x charging board, i used this one, https://www.reichelt.com/ch/de/shop/produkt/entwicklerboards_-_ladeplatine_fuer_3_7v_li-akkus_usb-c_1a-291398?PROVID=2808&currency=CHF&gad_source=1&gad_campaignid=20430207329&gclid=CjwKCAjwnZfPBhAGEiwAzg-VzKSrvlEcUvlBRn4TOlYj2kXsdthLv-47JeFUFHCYE57S514lr64FyBoCmXEQAvD_BwE 1x 3.7V LiPo 4x M2 brass inserts 2x M3 brass inserts 2x countersunk screws M3x8 4x countersunk screws M2x10 some double side stick tape for the charging board some cables, for power i used the original ones 1x On-Off Switch 4x7mm with 15mm hole distance. The symbols and text are in the first layer. I made one cover with mesh logos and one with no mesh logo's signs, so you can cut a piece of paper and insert the logo you like. Of course I also made a wall holder for this device. No support, use at your own risk. Visit: http://www.youtube.com/@andymason8315 Please don't forget, it would be nice: https://www.buymeacoffee.com/monduesea
