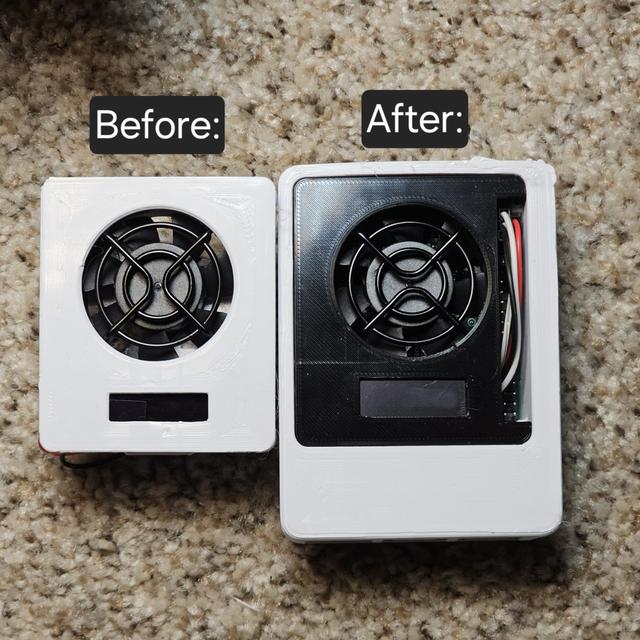

Fan and OLED 128x32 Plus GPIO Module for Modular Snap Together Raspberry Pi Case. Remix 3D model thumbnail

Fan and OLED 128x32 Plus GPIO Module for Modular Snap Together Raspberry Pi Case. Remix

by NathanBlocks · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles8.2k
UploadedFeb 7, 2025
⬇ 15 downloads ❤ 5 likes 👁 147 views

Description

This is a direct edit of the “__raspi_module_1_01-SIF_OLED.stl” module from the Modular Snap Together Raspberry Pi Case , and the only things i changed is 1: I made the OLED cutout bigger to allow you to mount it forwards or backwards, depending on which way you have your pi mounted. The original file's cutout was too small, so if you mounted it facing the front of the pi (assuming the USB Ports are the front), part of the display was hidden under plastic. 2: I gave the OLED chip slightly more clearance allowing it to clip in better. 3: I made a second version that allows access to GPIO. Please let me know if there are any problems, this is the first time I've edited a mesh and my first time uploading a file to any sharing site.
raspberrypi pi3 pi4 raspi ssd1306 4010fan pi2 128x32 128x32oled
