Filament dryer extension for Gorenje dehydrator
by Yuriy · via Printables
| Format | STL |
| Category | Other |
| License | CC BY |
| Uploaded | Apr 16, 2023 |
⬇ 33 downloads
❤ 6 likes
👁 409 views
Description

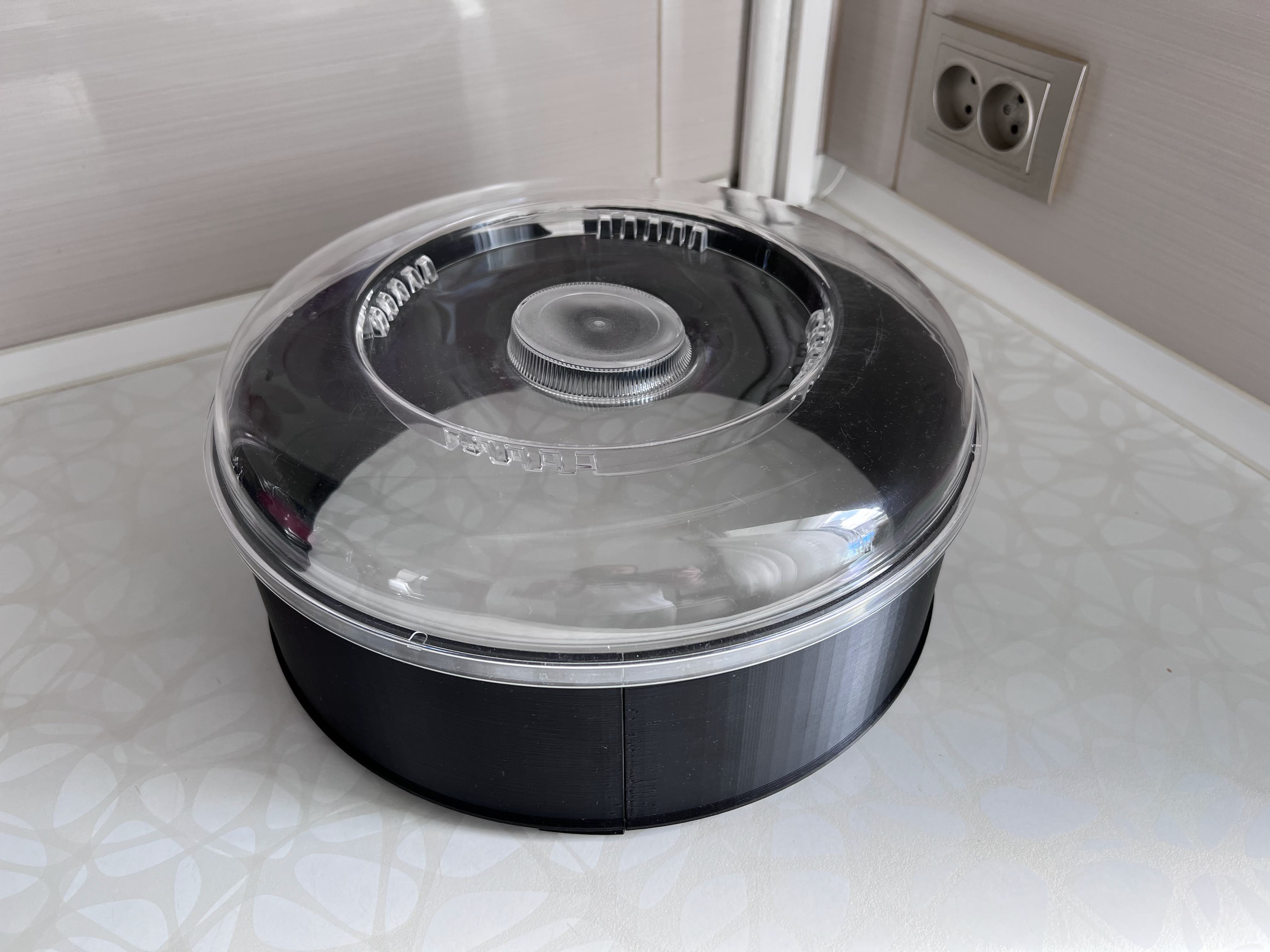

Bottom external diameter – 300 mm , top external diameter – 306 mm . You need 4 parts to create a cylinder. Print 2 test pieces to check if they fit nicely with your print settings. If the piece slides too hard – you can drill the hole part out with a 4 mm drill. The model is printed upside down with no supports. Make sure to create enough brim on the base (I used 5mm) as the model is quite thin. I would recommend choosing PETg over PLA as more suitable for high temperatures. You can set your own diameters using Fusion 360 file attached – edit parameters and export part named “tweaked”. I slightly edited the file to automate 1 parameter – the model was created by the original author @Haprog . P.S. Also, check this remix of the original extension for the same Gorenje model. P.P.S. It was found that a 20-liter plastic bucket from the mall fits this dehydrator perfectly, so check maybe you don't need to print the extender. ;)
AI Analysis: This is a mechanical part designed for a dehydrator, specifically an extension for a Gorenje dehydrator. It is a cylindrical container with a transparent lid that allows for viewing the contents inside. The part is intended to extend the functionality of the dehydrator by providing additional storage space for food items during the drying process. Notable features include the clear lid with a central knob for easy opening and closing, and the overall design is functional and compact.
Originally published on Printables
