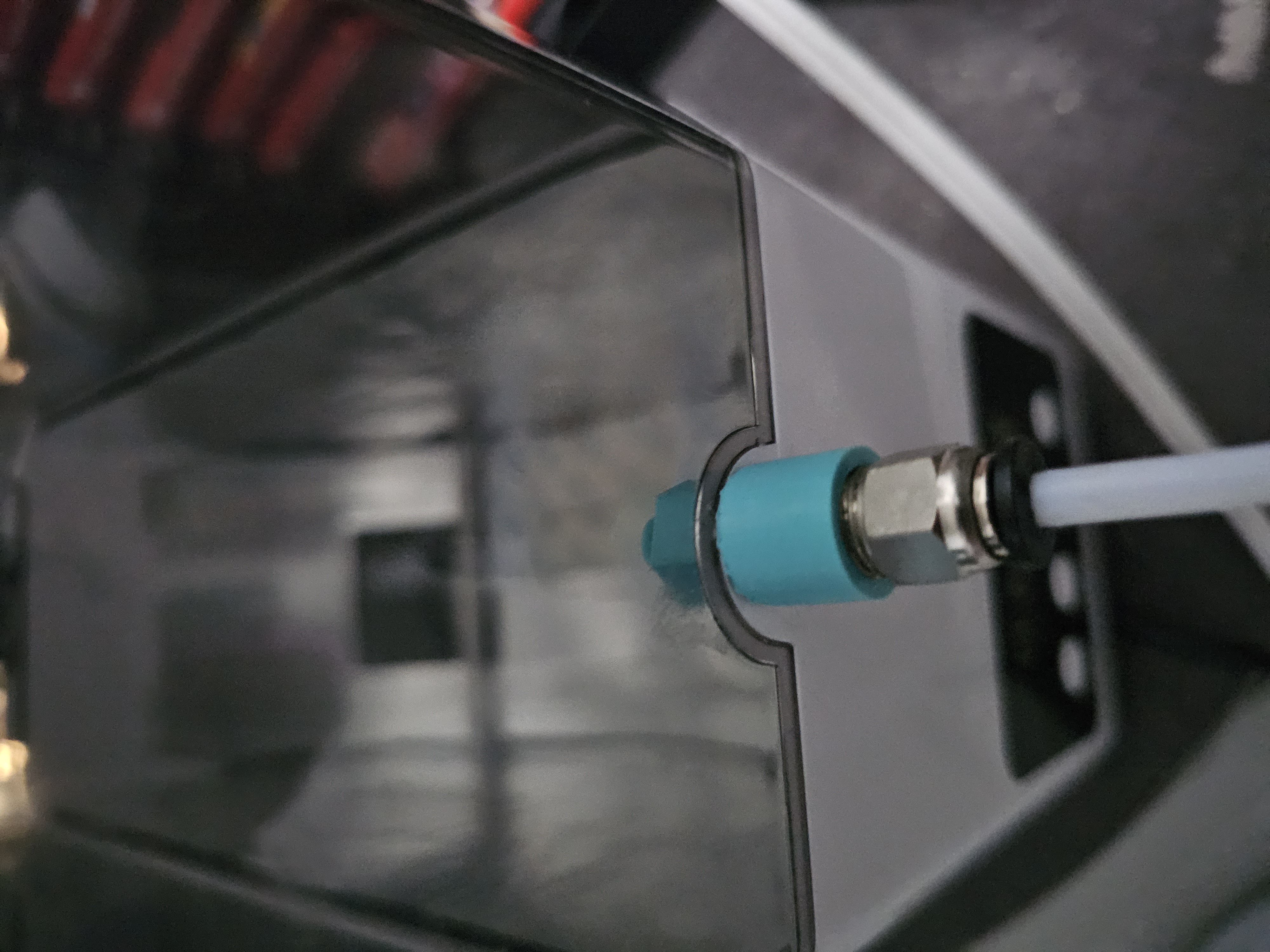

Filament feeder for Drybox cctree PTFE fitting mounts 3D model thumbnail

Filament feeder for Drybox cctree PTFE fitting mounts

by Impresiones Mimimiau · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles6.9k
UploadedOct 30, 2023
⬇ 35 downloads ❤ 3 likes 👁 324 views

Description

I was searching for a screwless filament feeder but that was a twopiece so it could fit into my cctree drybox as the hole is as in the image below 📷 Image redacted — claim this model to add your own media I combined this two models https://www.thingiverse.com/thing:1750875 + https://www.printables.com/model/54077-sunlu-filadryer-s1-filament-dryer-box-ptfe-fitting took the screwless and the two piece model from the first + added PTFE tube mountings thread from the second IMPORTANT: the M6-5 thread hole was too small for my PTFE mount which is the one that comes in the ender 3 next to the extruder(see image below), I had to make some modifications to the original so it could fit 📷 Image redacted — claim this model to add your own media Also the nut and the thread of the feeder was made tinier to fit into the cctree hole Printed at 100% no supports needed Only used supports for the M10 one because of an internal roof 📷 Image redacted — claim this model to add your own media
drybox feeder ptfetube filamentguide filamentdrybox pneumaticfitting ptfecoupler pneumaticconnector cctree dryboxparts
