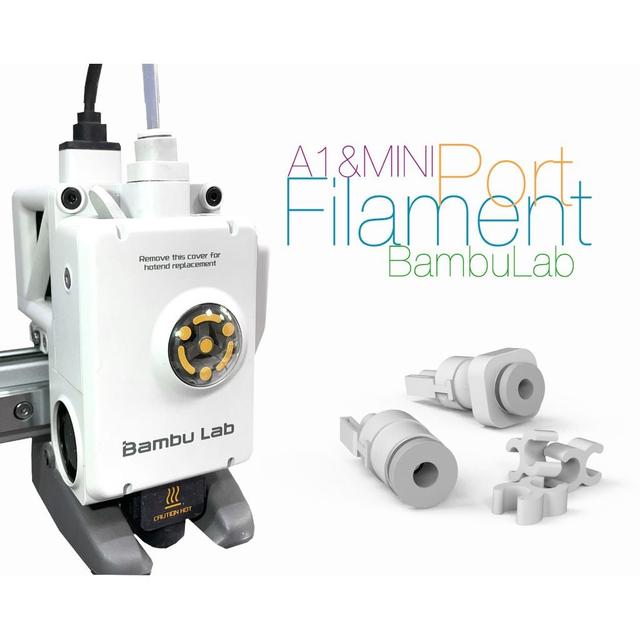

Filament Port for BambuLab A1&Mini

Filament Port for Bambu Lab A1 & Mini When I got my Bambu Lab A1 Mini, the idea of modifying it for a filament feed system came up immediately. The plan was simple: design it from the start for use with AMS 2 Pro, even though at that time the firmware didn’t yet allow the full potential of that setup. The hardware and parts were prepared in advance — in a way, the project existed before it was fully supported by software. 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media This write-up is a bit late, but it’s one of those cases where the relevance doesn’t really fade. Solutions like this are still useful for anyone working with compact filament feed systems and looking to simplify the mechanics without sacrificing functionality. Switching to a Single-Channel Setup The core of the modification is replacing the standard four-channel fitting with a magnetic sensor by a single-channel version. The idea isn’t to complicate things — it’s the opposite. In modern use cases, that multi-channel approach is often unnecessary. One channel for filament feed is enough to keep the system functional while making it cleaner and more streamlined. Visually, it also makes a difference: the assembly becomes more compact, cleaner, without extra elements that were previously required due to older configuration logic. Important Note on the Magnet and Sensor It’s worth focusing separately on the filament detection unit. The stock system uses a magnet working together with a Hall sensor. If the filament tangles on the spool or there’s a feeding issue, the fitting drops, the magnet shifts closer to the Hall sensor, and the system registers the event — the printer pauses for diagnostics. When removing the magnet from the original fitting, it must not be ignored. Take it out carefully and mark its orientation before removal. The mistake here is simple but critical: reversed polarity → the sensor won’t respond correctly incorrect placement → false errors or no response at all In simple terms, the system either stops detecting real issues or starts “panicking” for no reason. Material and Appearance I printed this in PETG. Use a minimal layer height — this reduces layer roughness inside the fitting and prevents interference with filament movement. Pre-configured 3MF files are available for download . The end result feels less like a mod and more like a stock component from a different revision. Fittings and Mechanics For the tube locking mechanisms, I use ready-made fittings. They can be carefully removed and reused — no complex processing required, and it saves time. Cable and Tube Management An additional organizer for the cable and filament tube is included. 📷 Image redacted — claim this model to add your own media After switching to a single-channel setup, bulky holders are no longer needed. What remains is: the print head cable one filament tube Everything else becomes redundant. Operational Reliability The system has been running since last summer. No failures, no odd behavior, no need for intervention. That’s the key point: this isn’t just a “nice idea,” it’s a working configuration proven over time. Current Context Today, similar single-channel fittings can already be bought off the shelf. In that sense, printing them is no longer a necessity — it’s more about customization. But there’s a nuance: printing still offers more flexibility. Fast production and simple assembly make it practical. Lubrication and Careful Assembly In similar builds, I used lubricant to ease fitting insertion into plastic. 📷 Image redacted — claim this model to add your own media Important clarification: this is not glue. It’s a neutral, plastic-safe lubricant that simplifies assembly without damaging the material. Final Sometimes projects like this outlive their original intent. They start as a temporary solution for a specific problem, then quietly become part of a system that just works. No noise. No attention. And that’s the whole point of this kind of modification — it shouldn’t stand out. It should disappear from view, leaving only the feeling that everything has become a bit simpler, quieter, and more correct. See the video for details: 📷 Image redacted — claim this model to add your own media If you liked this thing - let me know by putting like! Parts links below: Fitting PE D4mm Connector For Bambu A1/A1 mini Lubricant for Plastic Gear XY-2 Glue 242 Links to used tools: NOGA deburring tool and Blades Vise for CNC Small My new machine: 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media My favorites: 📷 Image redacted — claim this model to add your own media Thank you for every tip or donation, it means great recognition for me and helps a lot to keep going! 📷 Image redacted — claim this model to add your own media https://ko-fi.com/perinski **BTC:**bc1qplpzq36ghw84hty4nn2zzu4ps4sdh4th0v93j8 **ETH:**0xc766ebbeAa76aaf629788c8F99C33A8d80d48977 My some other things: 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media
