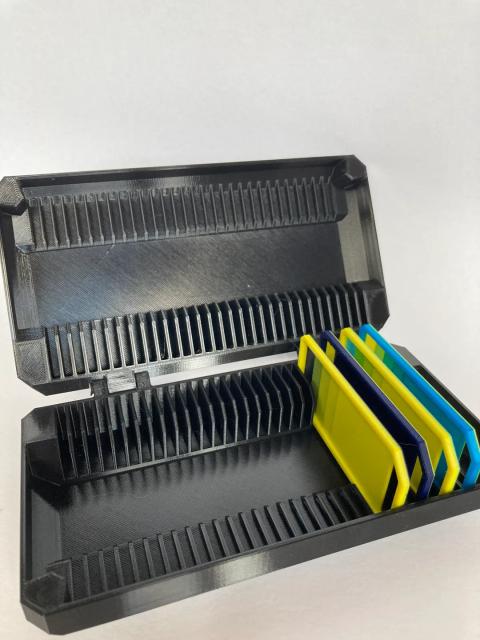

Filament Sample Box | Infill / Color Swatch | Remix M3x25mm

This is a remix, the original design can be found here . I have modified the model according to my wishes and additionally created a version which is printed in two parts and connected with two M3x25 screws, as well as a version which fits on the Prusa Mini and one with only 20 slots for samples. The other will hold 30 filament samples . I enlarged the holes for the four magnets, now 6x3mm magnets fit inside. For this, a pause is inserted in the slicer at a height of 22.2mm and then the magnet inserted with some glue or tape. I have slightly enlarged the filament samples, there are two versions. One version with different layer thicknesses to show the light transmission and a flat version from which you can make an infillsample. Print it with 5 wall lines but without top and bottom layers . Of course you can also use the original samples if you want to use the ettikets LinearRelation has linked. Furthermore, the box was slightly widened, since the outer slots in the area of the magnetic closure were somewhat narrower. In addition, the cards are now guided in the front and back, so that it looks neater. What you need: 2 M3x25 screws, if you don't print the print-in-place version. 4 round 6x3mm magnets (make sure you insert them with the right polarity!) Some glue or tape to keep the magnets in place while the hotend moves over them.
