Firebat F1 case

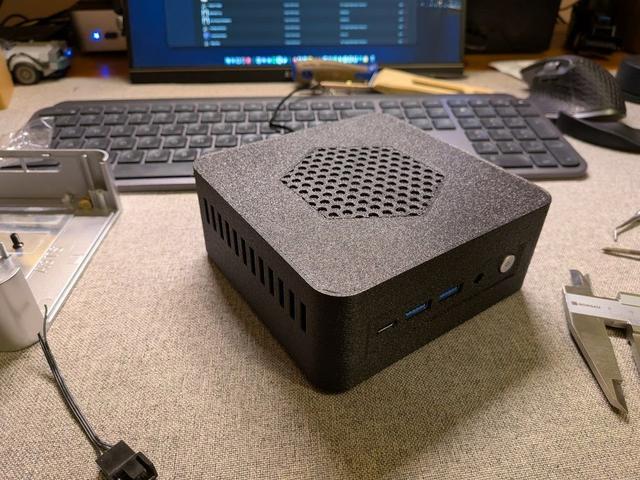

Firebat F1 – Custom Mini PC Case Material: PETG-CF10 Nozzle: 0.6 mm Construction The bottom part of the enclosure is the original case from the Firebat F1. Heat-set threaded inserts from the stock enclosure were reused. Fine dust mesh was installed behind the ventilation openings. Cooling Fan: 80 × 10 mm Voltage: 12 V Power source: USB port Rubber rings were placed under the fan to slightly increase the clearance and improve airflow. Notes This is my first attempt at designing something more complex than a simple pencil holder. The design will likely be refined further — there are still several aspects that can be improved.
