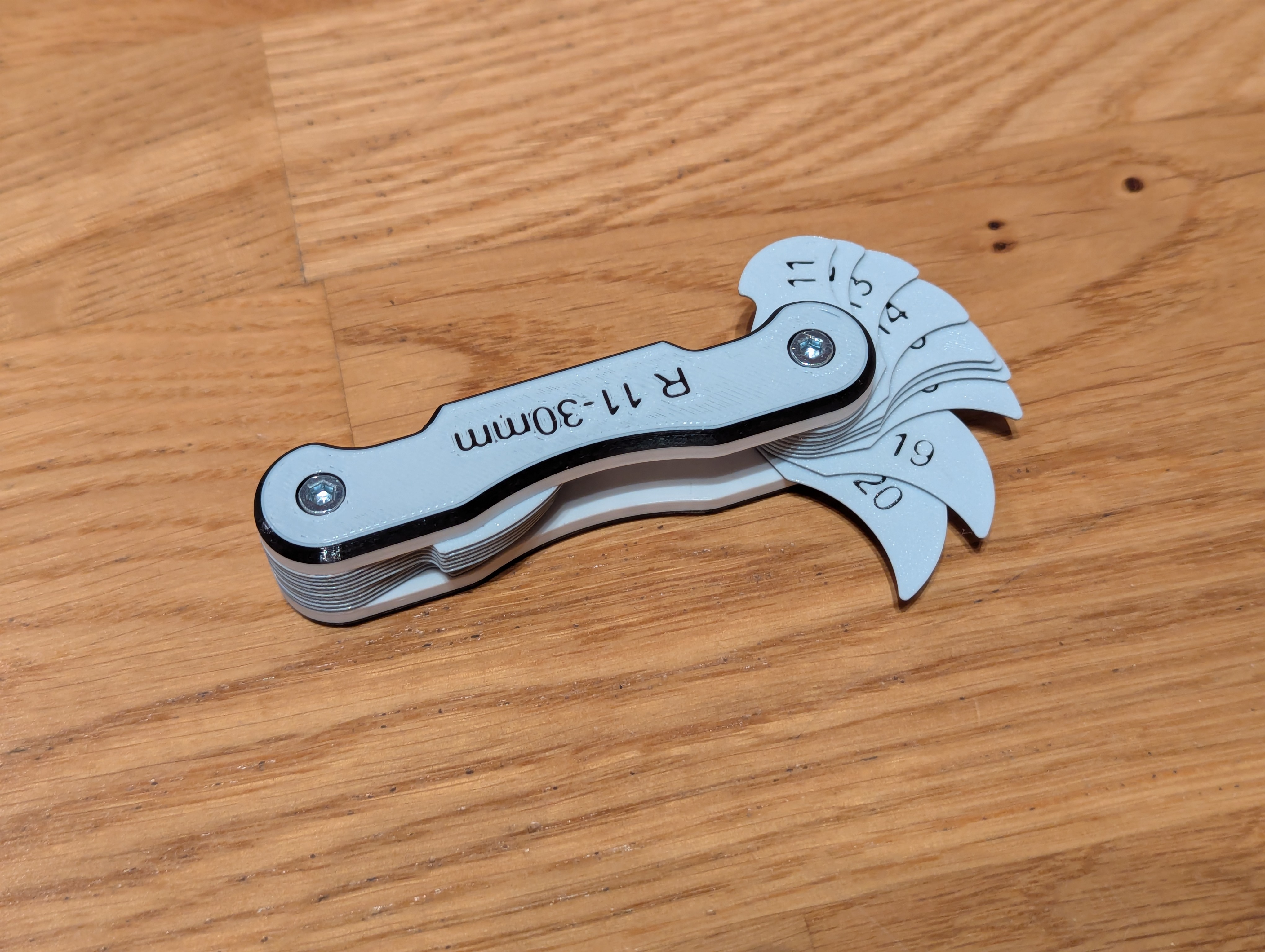

Fixed Blades for 11-30mm Radius Gauges
by firetech · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 37.2k |
| Uploaded | May 3, 2025 |
⬇ 46 downloads
❤ 2 likes
👁 181 views
Description
I found two issues in the 11-30mm blades of Jaha's Radius Gauges (after printing unit's remix ). The shape of the “20mm” blade was actually identical to that of the 21mm blade, i.e. a 21mm radius. (Has been fixed in Jaha's original since publishing.) The indented text on the 11-30mm blades was slightly (0.05mm) more shallow than the text on the 1-10mm and 30-50mm blades, causing the text to be one layer thinner, which I fixed in Fusion before printing. Fixing the text depth was easy in Fusion. I then tried recreating the intended 20mm shape to the best of my abilities, and think I managed to make it fit in quite well. Note that my remix only covers the Metric Fasteners variant of Jaha's original.
AI Analysis: This is a precision measurement tool used to check the radius of circular objects. It features multiple blades marked with metric measurements for accurate fitting and calibration. The tool is designed for mechanical or engineering applications where precise radius verification is required.
