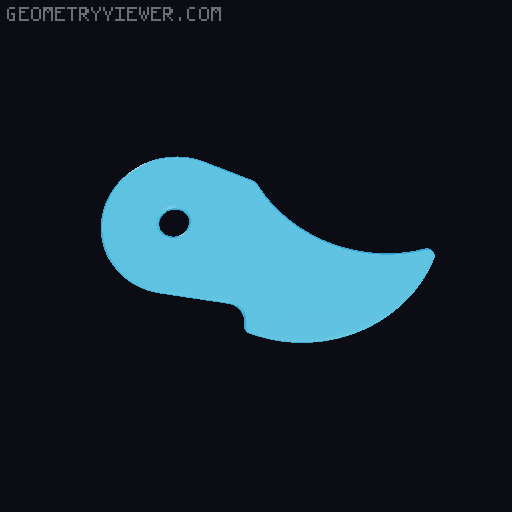

Fixed Blades for 11-30mm Radius Gauges

by firetech · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
Triangles2.0k
UploadedMay 3, 2025
⬇ 46 downloads ❤ 2 likes 👁 181 views

Description

I found two issues in the 11-30mm blades of Jaha's Radius Gauges (after printing unit's remix ). The shape of the “20mm” blade was actually identical to that of the 21mm blade, i.e. a 21mm radius. (Has been fixed in Jaha's original since publishing.) The indented text on the 11-30mm blades was slightly (0.05mm) more shallow than the text on the 1-10mm and 30-50mm blades, causing the text to be one layer thinner, which I fixed in Fusion before printing. Fixing the text depth was easy in Fusion. I then tried recreating the intended 20mm shape to the best of my abilities, and think I managed to make it fit in quite well. Note that my remix only covers the Metric Fasteners variant of Jaha's original.
metric radius radiusgauge measurementtool bugfix
