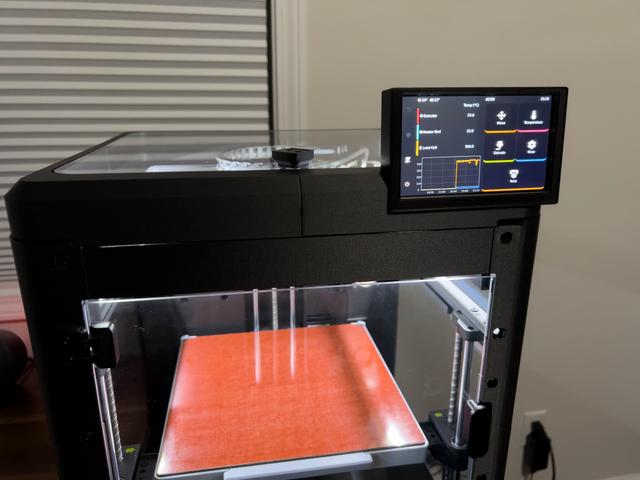

Flashforge AD5M Mini Top with BTT Touch 5 v1.2 Mount 3D model thumbnail

Flashforge AD5M Mini Top with BTT Touch 5 v1.2 Mount

by ChaoticWeaponry · via Printables
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles16.4k
UploadedMar 30, 2025
⬇ 30 downloads ❤ 21 likes 👁 1.2k views

Description

This is a mini-top enclosure for the Flashforge Adventurer 5M, it includes an integrated mount for a BTT Touch 5 ( v1.2 ) display and shell for said display. The back panel of the display is mounted to the mini-top FIRST, then the display with the front bezel is slid on and secured with small plastic screws on the top and bottom. Parts needed: 2x M3 threaded insert for mini-top. 2x M3 x 12/15mm screw to secure display rear bezel to mini-top. 2x M2 x 8mm wood/plastic screws to lock front and rear display bezels. Printing: I printed all of my mini-top components flat and used standard supports. Layer height, speed and infill dependent on your preferences (I used 0.12mm layers, 10% gyroid infill, 120-150mm/sec speed)
adventurer5m ad5m

Originally published on Printables
