Flat Crank handle for Ratchet strap reel (clicky assembly)
by WorstCase · via Printables
| Format | STL |
| Category | Organisation |
| License | Public Domain (CC0) |
| Triangles | 2.8k |
| Uploaded | Apr 5, 2022 |
⬇ 206 downloads
❤ 70 likes
👁 1.8k views
Description

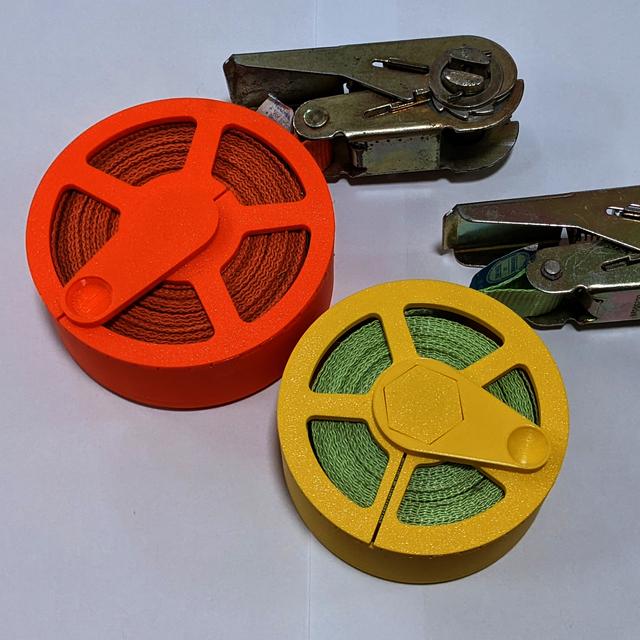

The original crank is made out of three parts and they have to be assembled with a screw. This is overly complicated for a simple organizer AND it is quite bulky. In my case it wouldn't fit in the tiny compartment of my car with the original handle. This new and very simple version the whole assembly is flatter and easier to print. Parts to print for V1 (orange PETG in the picture) Make sure to print the original parts: reel base.STL reel cover.STL available here: https://www.printables.com/model/135585-ratchet-strap-reel-clicky-assembly-width-30mm/files AND crankV1_remixed.stl Parts to print for V2 (yellow PETG in the picture) Make sure to print the original parts: V2 reel base.STL V2 reel cover.STL V2 crank.STL available here: https://www.printables.com/model/135585-ratchet-strap-reel-clicky-assembly-width-30mm/files AND crankV2_remixed.stl BIGGER straps? Not necessary anymore for V2 The original ratchet-strap-reel-thingi was a bit too small for my 5m heavy-duty strap. I printed the all the files with 120% size in x- and y-dimensions while leaving the z-dimension at 100%: 📷 Image redacted — claim this model to add your own media
