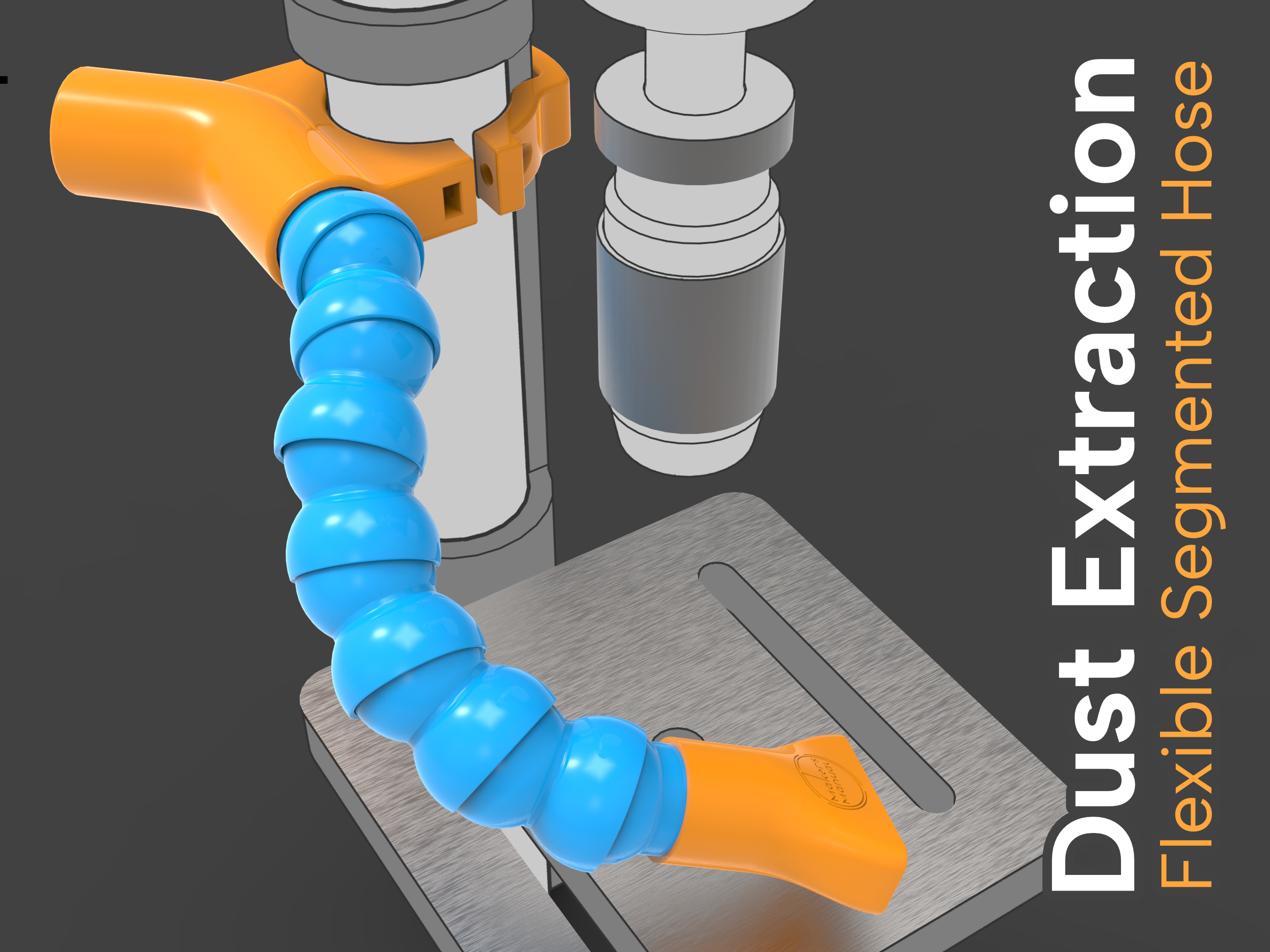

Flexible Hose for Dust Extraction

Designed to seamlessly integrate into your workshop, the clamp has a 35mm hole on both ends to suit a standard shop vacuum hose end. If you choose not to use the clamp, then I have included an adaptor to convert from flexi hose directly to shop vac. I have created several Pillar Drill clamp sizes, so hopefully one will fit. Parts for Assembly 2 x M6x35mm Countersink Bolts 2 x M6 Nuts I would recommend printing with 8 Mid Link , plus a Start Link and End Link , to give maximum flexibility in the design. After printing, I would recommend lightly sanding the parts to remove any lumpy bits before assembly. Also a little PTFE lubricant can help. Nozzle: 0.4mm Layer Height : 0.20mm Infill : 25% Orientation: Orientation is important, see images Supports : Only required for Clamp A as pictured Brim : Brim is recommended for Funnel Attachment, everything else is fine without Funnel Attachments There are two funnel attachment options for various purposes (see images) . These should all be printed with the hose end to the bed. A 5mm brim is a good idea and the ‘Encapsulated Funnel Attachment’ will need support. Important Note : Some printers may print links looser than others. For this reason I would recommend doing a test print first, if you find the connection too loose it maybe worth looking at your print settings. This was printed with Hatchbox Blue Grey PETG . I would recommend printing this print PETG rather than PLA for increased durability. I hope you find this model useful. If so we would love it, if you can give us a LIKE. You can also follow us on our YouTube Channel here.
