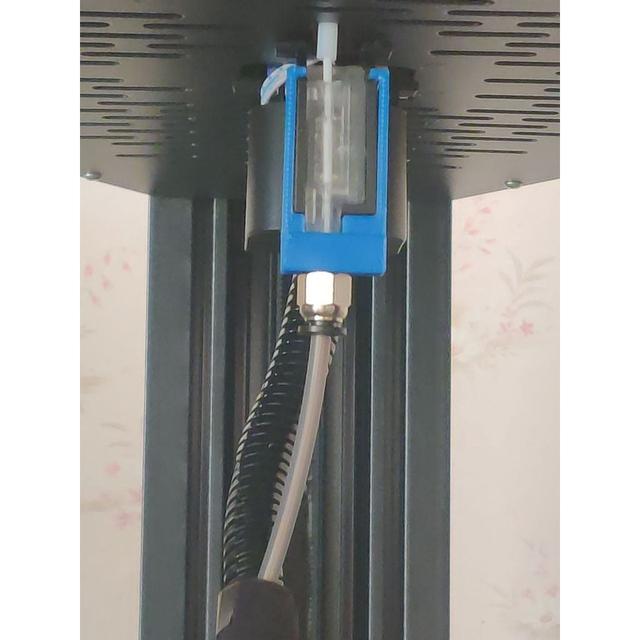

FLSUN  V400 Tube Connector Adapter 3D model thumbnail

FLSUN V400 Tube Connector Adapter

by Bushmills · via Thingiverse
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
UploadedApr 7, 2026
⬇ 4 downloads 👁 27 views

Description

Filament, loaded into the FLSUN V400, dangles freely between filament sensor and print head. While this doesn't impose a problem while printing, it does between prints, especially when using hygroscopic filaments or pausing extensively: The part of filament exposed to air sucks moisture. As this is the first part to be printed with a new item, the water logged filament may create a bad first layer, or simply break. Neither is nice. There's no simple way to extend the small section of pipe at the print head up to the filament sensor, unless a tube connector can be attached to its filament exit. That's what this adapter does: sitting at the filament exit, while allowing to mount such a connector. Mounting is easy, as it simply snaps on the filament sensor. scad file added, should you wish to use a tube connector with different thread or seal diameter. I printed adapter with PETG as the clamp snapping onto the filament sensor should be less brittle compared to PLA.
3D Printer Parts adapter filament flsun FLSUN V400 openscad tube connector

Originally published on Thingiverse
