Fully Portable Pinecil Soldering Station with Battery
by Zach Barnes · via Printables
| Format | STL |
| Category | Electronics |
| License | CC BY-NC-SA |
| Triangles | 110.3k |
| Uploaded | May 23, 2024 |
⬇ 230 downloads
❤ 118 likes
👁 2.6k views
Description

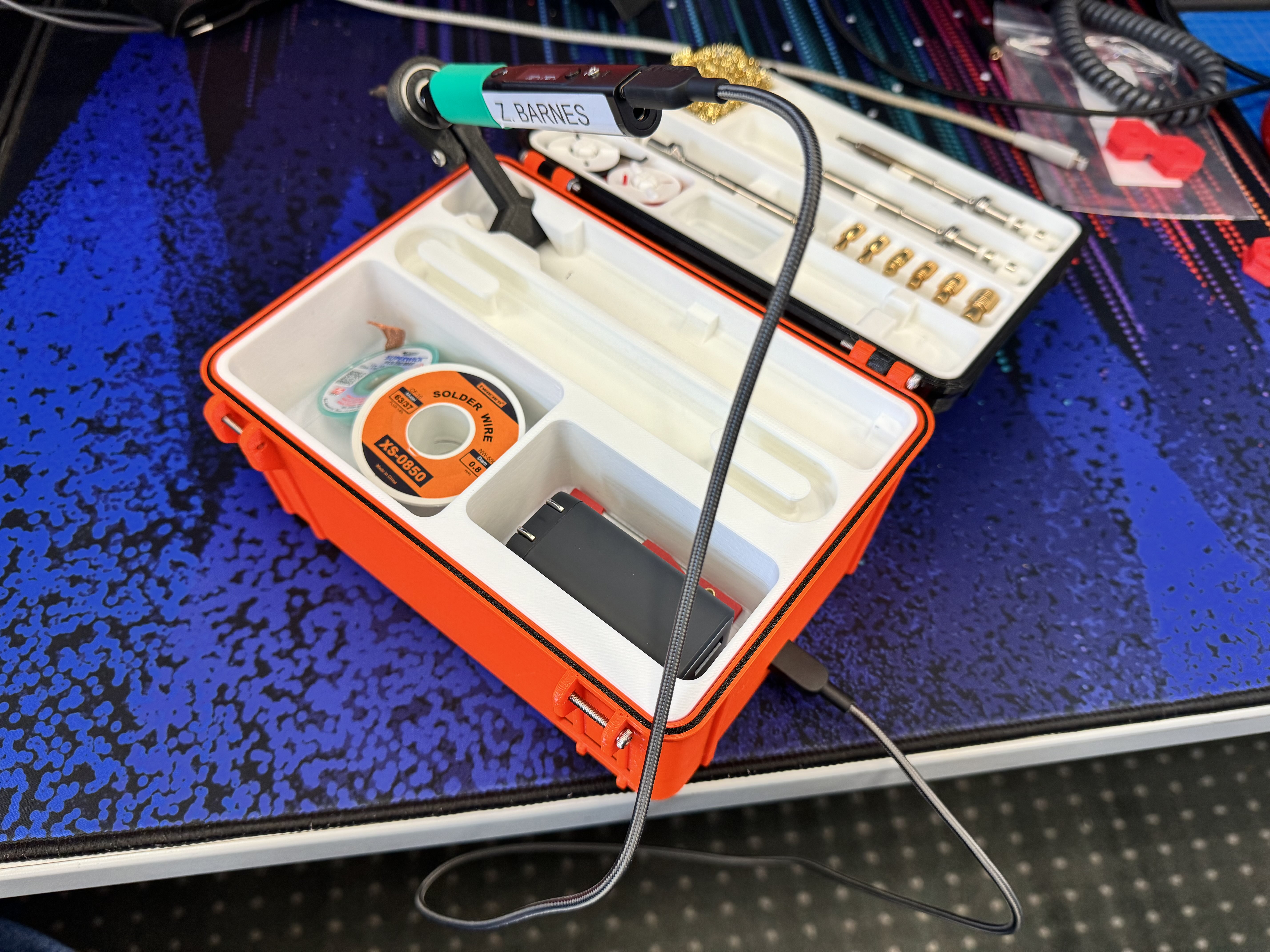

This model builds on the fantastic Pinecil storage systems already out there. To complement a lot of the less featured, minimalist designs out there, I wanted to cram as many features as possible into one of these boxes. This box includes all of the wonderful features from @BlackEternity's All in One Pinecil Box like the CNCKitchen heat set insert kit and large tubs for power bricks and solder. I have also added storage for wire strippers, heat set inserts, liquid rosin and isopropyl alcohol, and a portable power bank that can run the soldering iron. To fill out this kit I used all of the following items: Solder Solder Wick Power Brick - I got an Anker 65W USB-C brick, but a pretty wide variety will work Dermasafe knife Mini Screwdriver for changing solder tips - I used https://www.amazon.com/dp/B0BK4FMLKN?psc=1&ref=ppx_yo2ov_dt_b_product_details Charging cable - I got a 1m USB-C PD cable, but I would recommend a 1.5m, it should fit, though it will be tight. Some 22 gauge wire 608 bearing for soldering iron holder Brass tip cleaner CNCKitchen Heat Set Insert Kit. Make sure if you get it that you get both the swappable tips and the TS100/Pinecil Adapter 1x M3 x 16 screw and nut 4x M3 x 20 screws I designed the base around this power brick from uGreen: https://www.amazon.com/dp/B0C3GTMX5M?psc=1&ref=ppx_yo2ov_dt_b_product_details 2x these glass bottle with needle dropper, one for liquid rosin flux and one for isopropyl alcohol: https://tecratools.com/pages/service/32108.html Heat set inserts M2-M6 Wire strippers: https://www.amazon.com/Hakko-CSP-30-1-Stripper-Maximum-Capacity/dp/B00FZPHMUG I would like to add better storage for the glass dropper bottles in the bottom storage, but have not gotten there yet. Maybe MK2! I printed all the exterior part out of PETG, the internal spacers out of PLA, and the iron stand out of CF-Nylon due to issues with it warping when printed out of PLA or PETG. ASA or ABS might also work.
