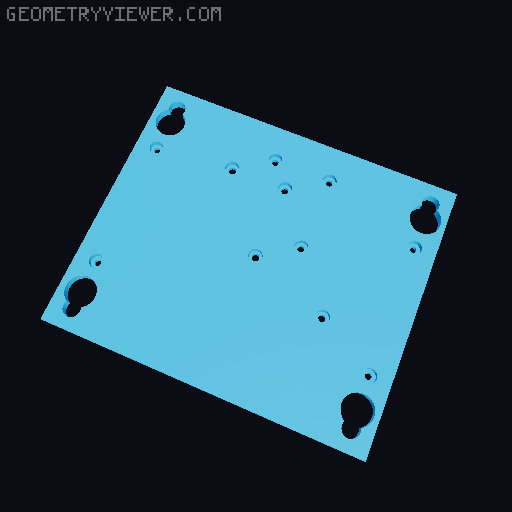

Fysetc AIO II faceplate and adjusted bottom plate for Recreator 3D 3D model thumbnail

Fysetc AIO II faceplate and adjusted bottom plate for Recreator 3D

by ba114 · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles39.3k
UploadedNov 1, 2023
⬇ 36 downloads ❤ 5 likes 👁 293 views

Description

This design remixes the original faceplate for the MK6 Funsize to suit the fysetc AIO II mainboard and LCD (https://www.aliexpress.com/item/1005004728567711.html?spm=a2g0o.order_list.order_list_main.39.766b1802RyVIiB). I have also developed firmware for this mainboard which can be found on the recreator3d discord: https://discord.gg/zBDgw4Pt To accomodate the deeper mainboard, i have moved the mounting holes in the base, for the power supply, further to the rear. If using an external power brick, this wont be required. Mount the AIO to the faceplate using the 4x brass riser screws that the driver board then screws to, and 2x M3x4mm screws at the end of the board with the knob. Included is a knob that i designed. I printed the main knob in transparent PETG and the inner recycling symbol components in black PETG.
recreator3d
