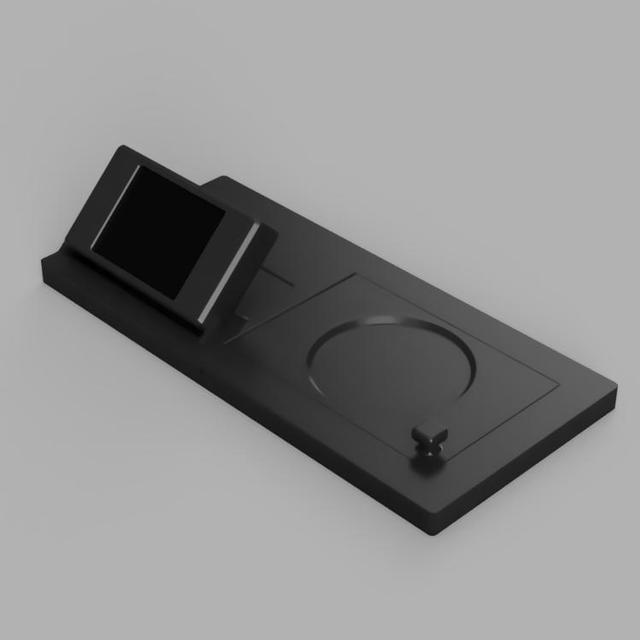

Gaggiuino - Rancilio Silvia Touchscreen Housing (replaces water tank lid)

This model is a remix of Loogle's Gaggia Classic / Pro touchscreen enclosure. That model is a remix of a project from LikeableBump. Consider visiting these projects and liking them! https://www.printables.com/model/280617-gaggiuino-gaggia-classic-pro-touchscreen-housing-a https://www.thingiverse.com/thing:5236286 Updates 13/2/2023: Changed the model to fit the tank better. Had to remove the tamper holder. Hardware 2 M4x10 button-head screws 2 M4 nuts Loctite 242/243 or equivalent Attaching the lid: Cut a piece of 1.75 mm filament with 5-10 mm extra length and use a heat gun to straighten if necessary Thread filament through the plate and lid holes and check that the lid rotates freely Melt one end of the filament to the plate with a soldering iron Cut the other end of the filament so there's about 1 mm extra sticking out of the plate to melt Melt other end of the filament to the plate with a soldering iron. File melted areas flush if necessary. Recommended Print Settings: PETG (preferred) or PLA, 0.4 mm nozzle, 0.2 mm layers, 30% infill, supports may be needed Print settings: Bambu Lab P1P 123-3D Black PLA (prefer use PETG) 0.2mm layers 215C nozzle 65C bed 20% infill (grid) Supports: yes Skirts: 5mm 📷 Image redacted — claim this model to add your own media
