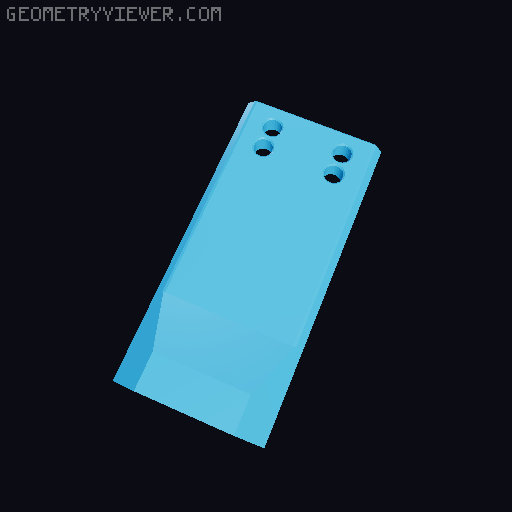

Gantry mounted nozzle-cleaner for Sovol SV08 (with nuts!) 3D model thumbnail

Gantry mounted nozzle-cleaner for Sovol SV08 (with nuts!)

by Llamasauce · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles3.4k
UploadedApr 2, 2025
⬇ 19 downloads ❤ 10 likes 👁 276 views

Description

Modified the brush arm to accept M3 nuts for assembly. All other parts can already be assembled with washers and nuts. I also cleaned up the geometry of brush holder - the side that mounts against the brush arm had an indented section that caused it to not rest flush against the brush arm. You'll need to download the ‘connector’ and ‘gantry mount’ from here: https://www.printables.com/model/1216407-gantry-mounted-nozzle-cleaner-for-sv08 ***UPDATE*** I adapted versions of the brush holder to accept A1 or A1 Mini nozzle brushes. I also incorporated the ‘big dumpy 5th wheel’ silicone reservoir to make the ‘on ramp’ to the ‘parking spot’ out of silicone so no aluminum foil or other protection for the ramp should be necessary. The 5th wheel inspired anchor was added to help keep the silicone in place. Directions for brush holder assembly: 1: Fill the entire nozzle park reservoir with high temp silicone and use a toothpick, nozzle cleaner, paper clip, etc… to work silicone into the anchor. * If you are able to smooth the silicone out at this point feel free but I had a hard time getting the silicone to cooperate while it was tacky so I left it alone knowing I could fix it once it cures. * 2: Once the silicone was cured I used a loose utility box cutter blade to carefully cut away any excess silicone. I guided the blade along the edges of the reservoir with a slight sawing motion. ezpz 3: Finally I sanded the front area with 220 grit followed by 400 grit wet dry sandpaper. Entire post processing took less than 5 minutes.
nozzlecleaner sv08
