Garden Irrigation Spray System - Garten Bewässerung System

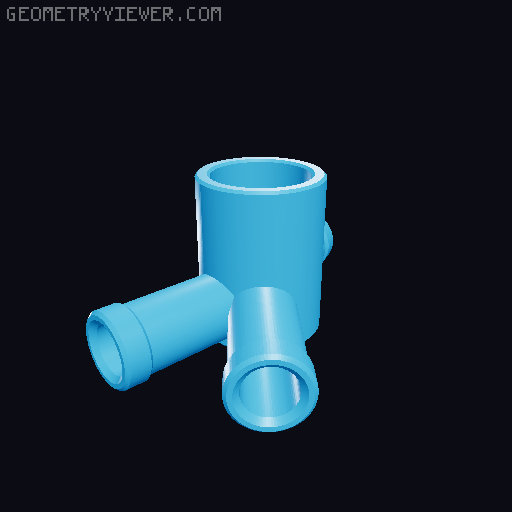

Hi here you will find a garden irrigation system like the manufacturer gardena has. Free under the motto "Why buy, when you can print it" ;-) I have designed it modularly and as GlueEdition so that you can connect different ground holders, middle parts with 1-3 direct connections / gardena coupling or different spray heads. the spray heads are still in development. However, angles of 45°, 180°, 270° and 360° are still available. I was amazed how far the spray head sprays with 2.5 - 3 bar water pressure, so a dosage with a screw in the head is available. Preview: Support material: The support material for the spray head is already included in the stl files ( please print the head upside down ). The fine tubes at the place where the o-ring goes in and at the spray exit is can be easily cut out with a cutter knife. For the middle section only support material is required from the base plate. You need: Printed parts ;-) Screws 3,5 x12 or 3,5x15 O-ring inner diameter Ø 12 x 3,5 mm NBR 70 ( https://www.ebay.de/itm/401009056492 ) M4x 25mm dosage screw Please note that the development is still in progress. So stay tuned!!!! Update 18.05.20 Now there is a middle section "T" with 3 feed lines offset at 90° to each other as a glued edition. With this you can also place a sprinkler on a side of a bed and u can connect a 90° supply line. Added: middle_section_3con180_v1_GLUE.stl middle_section_3con180_v1.stl 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Update 25.04.20 Now there is a middle section with 2 feed lines offset at 90° to each other as a glued edition. With this you can also place a sprinkler in a corner of a bed and you will not have any problems with the supply lines. Added: middle_section_2con90_v1_GLUE.stl 📷 Image redacted — claim this model to add your own media Update 31.08.18 From now on there is a spray head with two 90° opposite exits as some people want. This means that even things opposite each other can be cast. Added: sprayhead_v2_9090dg.stl sprayhead_v2_9090dgNOdosage.stl Update 30.08.18 A GlueEdition is now available. With this, the connections can now be glued to the centre section using acetone. This has two advantages. Anyone can fit any center section with a connector and there is no need to print overhangs. ( No more support needed for the middle section) I have attached some more pictures of the GlueEdition, which I have already tested. Works out great in my opinion. Added: middle_section_1con_GlueEdition_v1.stl middle_section_2con_GlueEdition_v1.stl middle_section_3con_GlueEdition_v1.stl middle_section_GE_Connector_Gardena_v1.stl middle_section_GE_Connector_Hoseclip_v1.stl sprayhead_v1_BlindPlug.stl Update 11.07.18 There is now 2 versions of the middle section with clamp connection and Gardena connection, which can be plugged onto a 12mm rod. This means that also higher plants can be sprayed. Added: middle_section_StaffHolder_Hoseclip_v1.stl middle_section_StaffHolder_Gardena_v1.stl Update 03.07.18 I have added some gardena coupling versions to the middle sections. Added: middle_section_1con_1gardena_v1.stl middle_section_2gardena_v1.stl middle_section_1gardena_v1.stl Update 26.06.18 I have attached some more pictures of the working system. I make the ground holder still a little stronger and with cross struts. Now the spray head is available with and without dosing screw. Added: ground_holder_v2.stl sprayhead_v2_90dgNOdosage.stl sprayhead_v2_180dgNOdosage.stl sprayhead_v2_270dgNOdosage.stl sprayhead_v2_360dgNOdosage.stl Update 15.06.18 I have added 90°, 180°, 270°, 360° versions and a dosage option with a screw in all spray heads. Added: sprayhead_v2_90dg.stl sprayhead_v2_180dg.stl sprayhead_v2_270dg.stl sprayhead_v2_360dg.stl https://www.thingiverse.com/thing:2958870 ALSO INTERESTING 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Happy printing MFG Chris Follow me on... 📷 Image redacted — claim this model to add your own media prusaprinters.org 📷 Image redacted — claim this model to add your own media thingiverse 📷 Image redacted — claim this model to add your own media Instagram If you like it ;) - Thx for me! 📷 Image redacted — claim this model to add your own media www.paypal.me/schiffersoft
