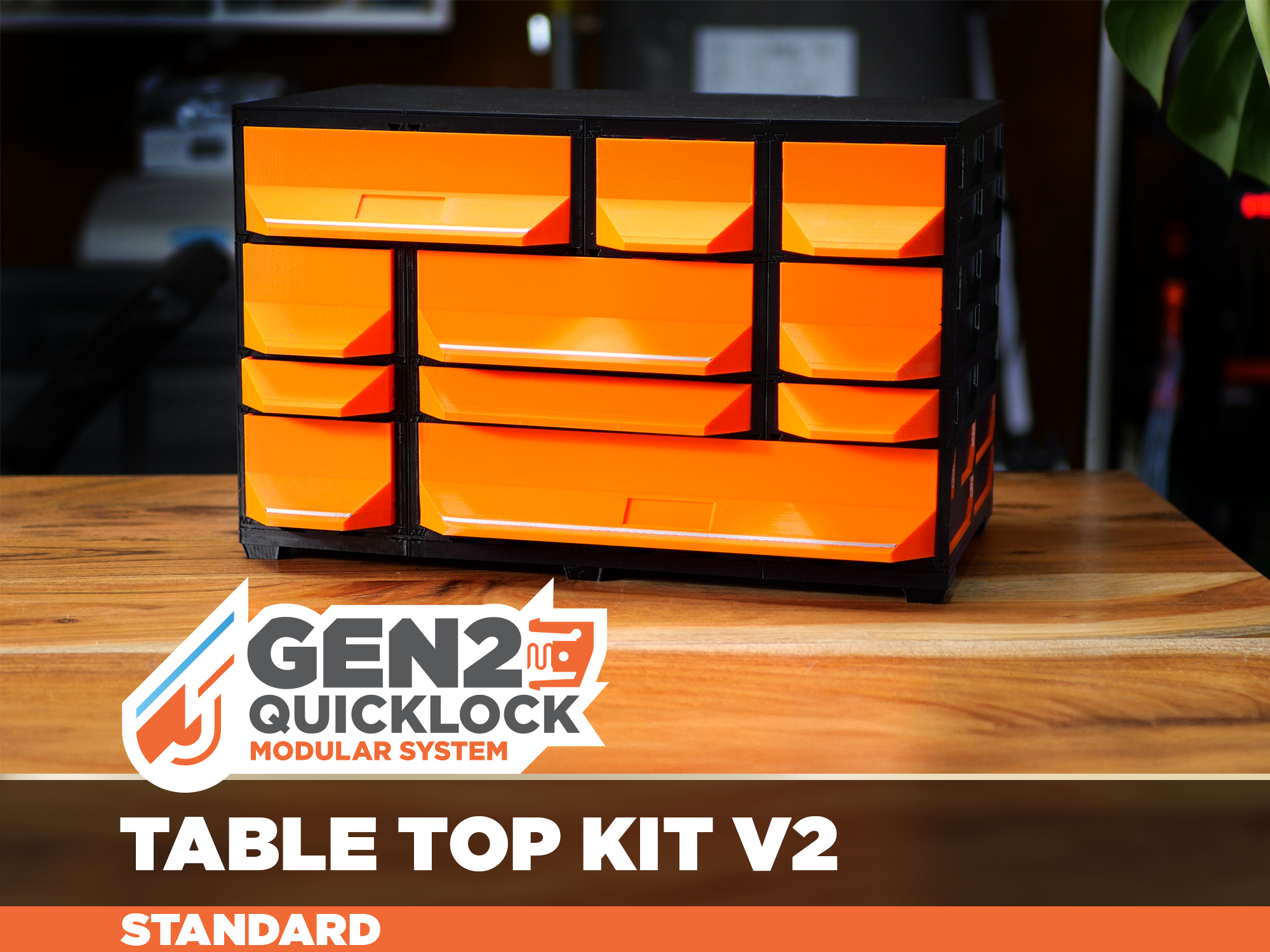

GEN2 Table Top Kit V2 - 185 (STANDARD)

📷 Image redacted — claim this model to add your own media JERRARI3D.com The GEN2 Modular Storage system is a fully functional 3D printable organization ecosystem that was originally designed to be used under any table or desk. The GEN2 Table Top Kit V2 allows you to place these units elegantly on any surface. This version support GEN2 drawers in 185mm (STANDARD) length, you can find all the supported drawers here: Jerrari3d.com This refined version creates outstanding structure for connect neighboring storage units allowing drawers to be installed horizontally without limits. Thanks to the use of compliant mechanism and dovetail rails very few screws are even required to assemble the unit. Quickly disassemble and reassemble the kit at any time to fit perfectly in any location. HARDWARE Includes affiliated links to help support my projects • Filament - PETG or PLA ( Black PETG - My go to for the drawer bodies) • Screwdriver/Hex-Wrench • Magnets (Optional) : 10x2mm or 6x2mm • Rubber Feet (Optional) or TPU for printed feet • M3 nuts and screws: Stainless-Steel or Steel PREPERATION To prevent warping, be sure to clean your print surface well, Warping can make it difficult, and sometimes impossible, for the rails to successfully slide together. I highly recommend using a build plate adhesive such as Nano Polymer or a glue stick. It also helps if your printer is placed away from windows or breezy areas, enclosure can great help. 📷 Image redacted — claim this model to add your own media In your slicer program you can also choose to add Helper-Disks/Brim-Ears in the corners of your prints, this provides more surface area to the corners you place them in to combat peeling of the bed and warping. No supports are needed for any of the models. INSTRUCTIONS Note: I have added the GEN2 single slim drawer shown in the video below to this model as a good starter drawer for those looking to get started. You can use any GEN2 storage unit in standard length - you can find them all here: Jerrari3d.com - GEN2 STANDARD THE GEN2 MODULAR SYSTEM
