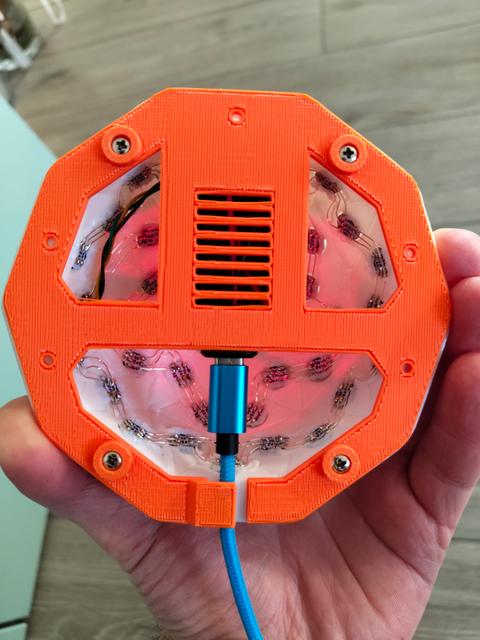

Geodesic(k) LED Hemisphere base plate 3D model thumbnail

Geodesic(k) LED Hemisphere base plate

by DJMaxergy · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles5.6k
UploadedNov 19, 2025
⬇ 8 downloads ❤ 2 likes 👁 72 views

Description

I had some spare parts of the original model printed (rejected due to printing quality) and I wanted to do something with it. So I built a hemisphere with it and wanted to control it by WLED. To hold everything in place and be able to move the hemisphere around, I created this base plate. It has mounting holes (M3 screws) for an ESP32 NodeMCU board and a separate USB socket bracket for power supply. For the USB socket I used this type: Greluma 5 Stk 3A Schnelllade-Typ-C-Buchse, 2 Draht USB C Buchse mit Schnappnut Schnalle : Amazon.de: Elektronik & Foto The base plate can be easily screwed with small wood screws (< 3mm diameter) onto the original holes which were intended to put some small pieces of filament in it to hold the two hemispheres in place when they were put together.
led rgb esp32 nodemcu sphere wled geodesic
