Glock 9 x 19 +3 OEM Magazine Extensions 3D model thumbnail

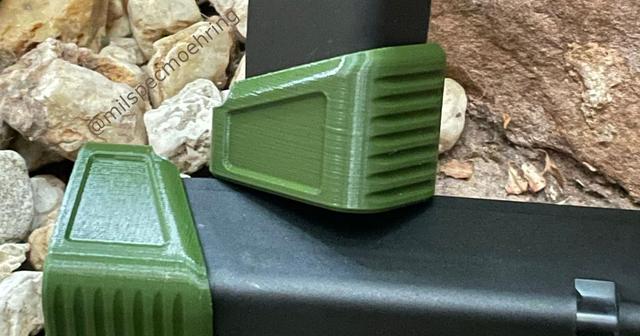

Glock 9 x 19 +3 OEM Magazine Extensions

by milspecmoehring · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-ND
UploadedMar 8, 2026
⬇ 2.5k downloads ❤ 278 likes 👁 12.3k views

Description

+3 Magazine Extensions for 9 x 19 Glock 17 OEM Magazines. Additional Hardware Required: M3 Threaded Inserts DIN 912 M3 x 6mm Hex Socket Head Screw or equivalent Soldering iron or long M3 Screw + heat source Sharp knife or Dremel Recommended Print Settings: 4+ Perimeters 100% Infill 0.15mm Layer Height Instructions: Disassemble the magazine Remove the two lugs on the bottom of the magazine with a sharp knife or dremel tool. Use a soldering iron or a long M3 screw + a heat source to heat and seat the threaded inserts into the provided 4mm blind holes. Reassemble the magazine using the original spring and spring retaining plate. Lock the extension in place with two M3 x 6mm screws Local laws apply If you need anything, feel free to reach out! Questions/Suggestions/Criticism is highly appreciated. Happy Printing…
ammo gun 9 glock shooting extension tactical pewpew magazine 9mm pew 9mmnato 9x19mm 9x19 9mmparabellum 9mmluger tacticool tacticalgear 9mmpara glonk extendo

Originally published on Printables
