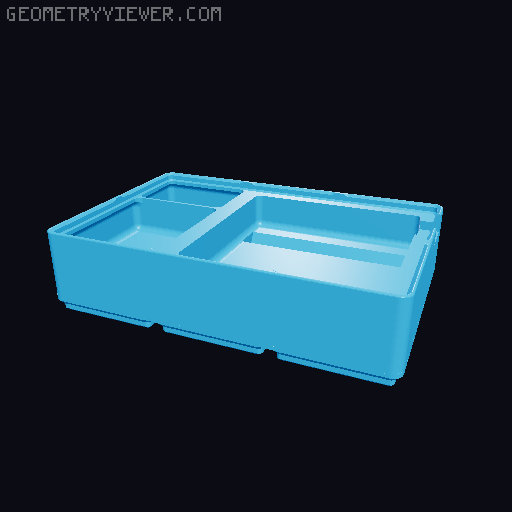

Gridfinity Bus Pirate 5 case and holder 3D model thumbnail

Gridfinity Bus Pirate 5 case and holder

by Matthias · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-SA
Triangles12.0k
UploadedJul 21, 2025
⬇ 113 downloads ❤ 13 likes 👁 492 views

Description

Gridfinity case for a Bus Pirate 5 with all accessories that doubles as a holder. Stores the Bus Pirate 5, Probe Cable Kit, Auxiliary Cable Kit and Quick Connect Adapter in a stacked 3x2 Gridfinity bin configuration. The compartment for the Bus Pirate 5 has a cutout which allows it to also serve as a holder for the Bus Pirate 5 at a 60° angle, with access to both the USB port and the probe and auxiliary ports. Update 2024-07-18: Add buspirate-holder-v2 with added depressions in the probe compartment to hold the probes upright (Credits to Dangerous Prototypes for the idea). Also made the probe compartment a bit wider. Update 2025-07-21: Add gridfinity-rebuilt-bins-custom.scad source file for OpenSCAD. Requires the rest of Gridfinity Rebuilt in OpenSCAD to work.
buspirate gridfinity

Originally published on Printables
