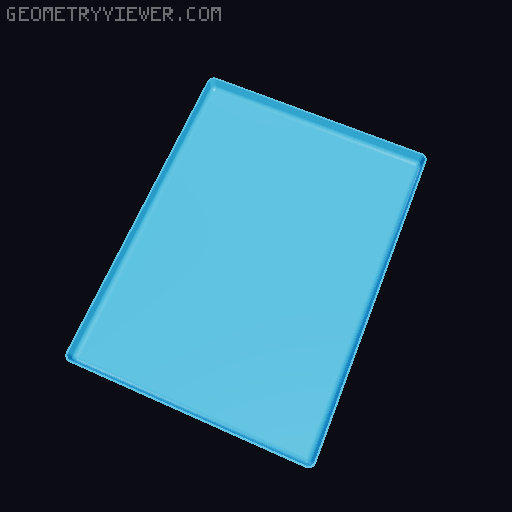

Gridfinity chest with 1 drawer 3x4x13 3D model thumbnail

Gridfinity chest with 1 drawer 3x4x13

by iw3d · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles6.6k
UploadedNov 9, 2024
⬇ 48 downloads ❤ 7 likes 👁 339 views

Description

I used the OpenSCAD files by @Monniasza_1787141 ( https://github.com/ostat/gridfinity_extended_openscad ) to generate the chest with drawers sized 3x4. The height of the large drawer is 95.52 mm, and that of the small drawer is 18.52 mm. The height of the chest is 132.28 mm. I used Azurefilm Matte PLA to print it with 0.2mm standard settings (Creality Ender 3 v3 KE). I printed the chest on its back. I used a bit of candle wax to aid the sliding of the drawers. This is part of a set of chest and drawer combinations needed for a small-sized bathroom cabinet: Gridfinity chest with drawers 2x4x1 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with one drawer 32.5 mm heigh. Gridfinity chest with drawers 2x4x7 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with two drawers, each 55.5 mm heigh. Gridfinity chest with drawers 2x4x9 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with two drawers, each 67.6 mm heigh. Gridfinity chest with 1 drawer 2x4x13 - the one you are looking at - a chest sized 3x4 in gridfinity bin units (1 unit is 42 mm) with one drawer 95.52 mm in height. Gridfinity chest with 2 drawers 2x4x13 - a chest sized 3x4 in gridfinity bin units (1 unit is 42 mm) with two drawers. The height of the large drawer is 95.52 mm, and that of the small drawer is 18.52 mm. Gridfinity open top chest 2x4 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with no top to fit a drawer or container
chest drawer organizers oragnizer gridfinity

Originally published on Printables
