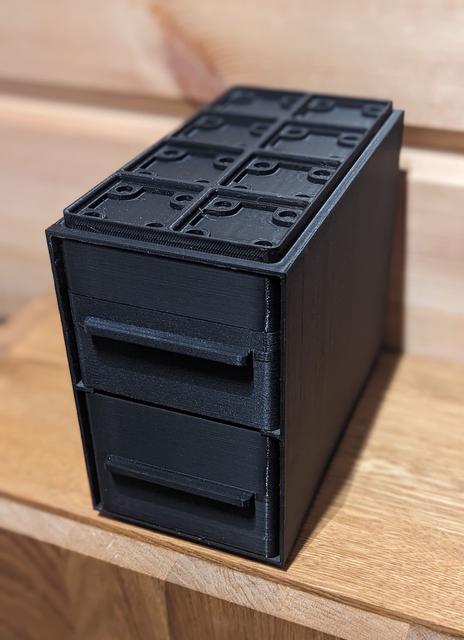

Gridfinity chest with drawers 2x4x9 3D model thumbnail

Gridfinity chest with drawers 2x4x9

by iw3d · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC
Triangles33.0k
UploadedNov 9, 2024
⬇ 63 downloads ❤ 7 likes 👁 398 views

Description

I used the OpenSCAD files by @Monniasza_1787141 ( https://github.com/ostat/gridfinity_extended_openscad ) to generate the chest with drawers sized 2x4. The height of each drawers is 67.6 mm. Files for 2x2 and 2x4 basic Gridfinity cups that fit in the drawer are included. I used a combination of Overture and Azurefilm Matte PLA, as well as Monoprice PLA to print it with 0.2mm standard settings (Creality Ender 3 v3 KE). I printed the chest on its back. This is part of a set of chest and drawer combinations needed for a small-sized bathroom cabinet: Gridfinity chest with drawers 2x4x1 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with one drawer 32.5 mm heigh. Gridfinity chest with drawers 2x4x7 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with two drawers, each 55.5 mm heigh. Gridfinity chest with drawers 2x4x9 - the one you are looking at - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with two drawers, each 67.6 mm heigh. Gridfinity chest with 1 drawer 2x4x13 - a chest sized 3x4 in gridfinity bin units (1 unit is 42 mm) with one drawer 95.52 mm in height. Gridfinity chest with 2 drawers 2x4x13 - a chest sized 3x4 in gridfinity bin units (1 unit is 42 mm) with two drawers. The height of the large drawer is 95.52 mm, and that of the small drawer is 18.52 mm. Gridfinity open top chest 2x4 - a chest sized 2x4 in gridfinity bin units (1 unit is 42 mm) with no top to fit a drawer or container
organizer chest drawers gridfinity
