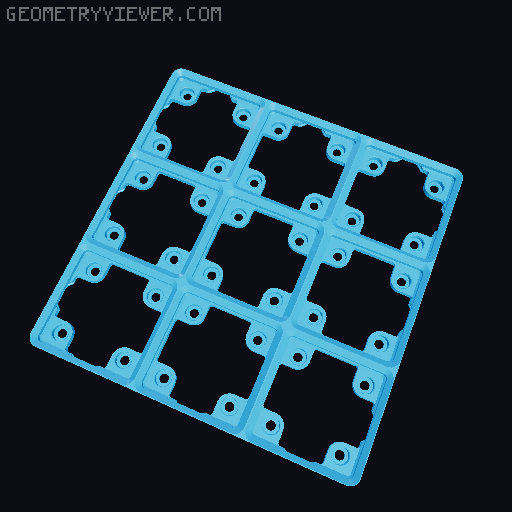

GridFinity Connecting Baseplate with press-fit magnets 3D model thumbnail

GridFinity Connecting Baseplate with press-fit magnets

by Elber · via Printables
FormatSTL
CategoryOrganisation
LicenseCC BY-NC-SA
Triangles21.3k
UploadedJan 7, 2024
⬇ 542 downloads ❤ 69 likes 👁 2.6k views

Description

Parametric (F3D) GridFinity baseplate with optional printable connecting clips. 6x2mm magnets can be press-fit into the model as per the remix source. Notes for changing parameters: When increasing the dimensions, make sure the slots have been properly cut from the main base. Fusion can sometimes improperly merge bodies and not properly delete the cutting body. If this happens, re-do Extrude9 in Blank Frame. (It's a 0.1mm extrude to merge the pattern of cutting bodies into one). Print at 0.25mm layer height, it's a multiple of the magnet tab z-height.
parametric organiser clip magnet organisation baseplate f3d gridfinity connecting gridfinitybaseplate
